HVJF-301 Partial Discharge Test System

ⅠIntroduction

Partial discharge test is the main testing item of the insulation of the electric power equipment, and parameters such as partial discharge are important indicators to evaluate the quality of the electric power equipment. Being the new member of the successful PD Test Equipment series, the HVJF-301 PD Test System series is developed according to the latest international and domestic technological progress.

The HVJF-301 uses the worldwide standard Windows operating system and an intuitive control and display panel to allow even inexperienced operators to learn quickly with minimal training. In addition, advanced features such as higher accuracy, auto-mated calibration, data analysis, and customized test recording, are standard. The product also has the full program-controlled automatic calibration, automatic synchronization, automatic voltage recording, automatic measurement & save & playback features.

Support all kinds of parameters in IEC-270 such as the discharge repetition rate n, the average discharge current I. Various display style of the PD wave form such as sine map, dot matrix and so on, making it easier to get the result. New digital filtering and interference suppression combined with a rich and dynamic statistical analysis of patterns.

COMPATIBLE HVDJF-301 system, the detection method, measurement loop, technical performance parameters comply with the latest GB7354 and IEC-270 "partial discharge measurement" standards. Applicable to all types of high voltage electrical equipment, partial discharge measurement, covering the full voltage and capacity levels, on behalf of the domestic digital PD instruments of the most advanced technology.

Ⅱ Features

1.Programmable control.

2.Automatic calibration, synchronization, voltage recording, saved measurements, playback.

3.Automatically generated test report.

4.Two-dimensional and three-dimensional diagram display PD.

5.Digital fenestration technology, strong anti-interference ability.

6.Dual -channel measurement and digital differential technology, which can measure 2 sample or 1 sample of two measuring points PD signal,  can be easily analyze source of partial discharge signals.

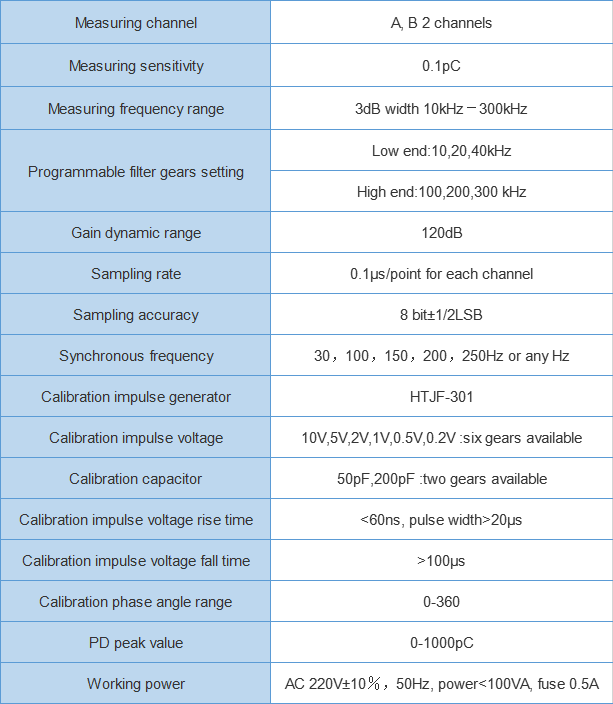

Ⅲ Parameters

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
