HVPD-12 Digital PD Detector

I Product overview

        The HVPD-12 digital partial discharge detector (hereinafter referred to as PD) is a new generation of high-performance digital PD measurement and analysis instrument, which is implemented by new technology. It is an alternative product of the traditional analog PD instrument. Anti interference technology of its various original so that you can accurately measure under the condition of strong interference; friendly user interface and high-speed sampling and refresh rate, with analog PD instrument visual effects; analysis, waveform records provided means to make you very easy to judge the nature of discharge; automatic recording and processing of test data that will soon be able to generate and test report; double channel embedded system, TFT touch screen, the system is stable and reliable, low failure rate. The system uses computer technology, analog electronic technology, high-speed signal acquisition technology, advanced digital signal processing and graphic display technology to complete partial discharge automatic measurement and analysis.

        The discharge device uses WINDOWS series operating platform, can choose the ellipse, straight line, sine wave display, 2D and 3D graphics analysis and spectral window and Q-V-F window on the static three-dimensional characteristics, a frequency voltage test and partial discharge pulses with measurement, observation and analysis. It can be operated by digital window, at any phase, single window and double window are chosen, ellipse is rotated at 360 degrees in order to avoid the influence of interference on measurement. Multichannel measurement and digital differential technology can flexibly make up the pulse polarity identification or balance measurement circuit, and effectively suppress the interference pulse signal. The advanced spectrum analysis can effectively reduce the background interference. A multichannel input channel, which can be boosted by six sets of signals (extensible), can easily be used to analyze the source of the signal. In the operation platform of the whole Chinese character, the frequency band selection, the gain transformation, the spectrum analysis and the two-dimensional and three-dimensional graphic display can be conveniently carried out. In addition, the system can also print or save single graphics to save continuous time graphic data for analysis.

 The discharge device applicable scope, test method, test circuit, technical performance parameters fully meet the national standard, the international standard IEC270 GB7354-2003 "measurement of partial discharge (Partial Discharge measurements)" and "requirements" guidelines for the measurement of partial discharge of power equipment DL 417-91 standard field.

 More information:

Project, News, Video，please kindly click the letters to view:

Product: DIGITAL / ULTRASONIC PARTIAL DISCHARGE TEST DEVICE

Tutorial Video Of HVPD-12 Digital PD Detector

II Quoted Standard

Ø IEC60270 / Partial Discharge Measurements

Ø IEC6067.11 / Dry Type Transformer

Ø IEC60885-3 / Whole Extruded Cable Partial Discharge Tests

Ø GB1094 / Power Transformer

Ø GB1207 / Potential Transformer

Ø GB12706.4 / Power Cable Attachment Test Requirements

Ø GB/T3048.12 / Cable Electrical Performance Partial Discharge Tests

Ø GB/T16927 / High Voltage Test Technique

Ø GB/T7354 / Partial Discharge Measurements

Ø GB1208 / Current Transformer

Ø DL417 / EPU Partial Discharge Measurement Guides

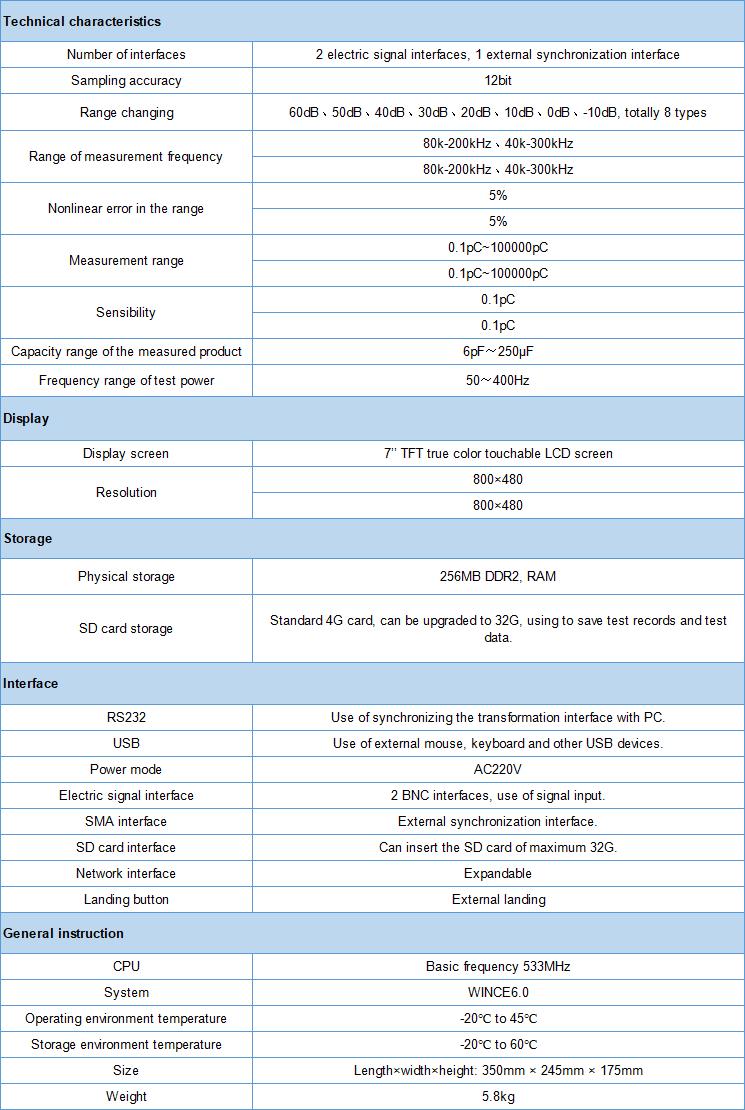

III Technical Parameter

IV Operation Video
