HVJF-S PRO01 Simplified Version Partial Discharge Detector

The simplified version of HVJF-S Pro has a built-in ultrasonic and terrestrial wave two-in-one sensor, as well as a real domain map.Can be widely used in the theater detection of power systems.

Share:
Inquire Now

Product Description

HVJF-S PRO01 Simplified Version Partial Discharge Detector



Ⅰ  Description

Can be widely used in the theater detection of power systems, including the insulation status of high-voltage switchgears, ring network cabinets, voltage / current transformers, transformers (including dry-type transformers), GIS, overhead lines, and cables Detection, to measure the discharge level of electrical equipment through the following indicators:

Partial discharge intensity detection: By measuring the discharge signal within a power frequency period, the intensity of partial discharge is characterized according to the maximum value (dB) in the discharge pulse sequence.

Partial discharge frequency detection: The device measures the discharge signal within a power frequency period, extracts discharge pulses and characterizes the frequency of partial discharges according to the number of discharge pulses.


The difference between HVJF-S Series (HVJF-S, HVJF-S PRO, HVJF-S PRO01) ultrasonic partial discharge testers, please click to view.



More information:


1. Related Project, News, Video,please kindly click the letters to view:

Product: HVJF-S Series Partial Discharge Detector

VIDEO: Tutorial Video of HVJF-S Partial Discharge Detector

NEWS: HVJF-S Partial Discharge Detector PURCHASED by Our VIP006 customer

News: HVJF-S Partial Discharge Detector PURCHASED by Our VIP066 customer

PROJECT: HVJF-S Partial Discharge Detector


2.Related recommendation,please kindly click the letters to view:

PD Meter (Digital)



Ⅱ  Product features

☀ Configure different sensors to realize partial discharge detection of almost all electrical equipment;

☀ Provide time domain waveform, PRPD, PRPS and other discharge patterns to realize the analysis of different discharge types;

☀ Humanized man-machine interface facilitates data management of different devices, including traceback of historical data change trends, horizontal and vertical data analysis, and realizes 360 ° comprehensive diagnosis of the device under test;

☀ Built-in ultrasonic sensors and transient ground voltage (hereinafter referred to as TEV) sensors, which can be connected with special sensors such as transformers, GIS, overhead lines and cables;

☀ Adopt non-intrusive detection method, no power failure during the test, maybe no high voltage source is applied, which is more convenient to use than traditional pulsed partial discharge detector;

☀ The test bandwidth range is 30kHz ~ 2.0GHz, suitable for the detection principle of various frequency bands;



Ⅲ  Product Application

HVJF-S Pro01 partial discharge detector is widely used in the following fields:

☀ Development and distribution enterprises

☀ Railway system

☀ Petrochemical power supply system

☀ Aerospace testing field

☀ Automatic testing field

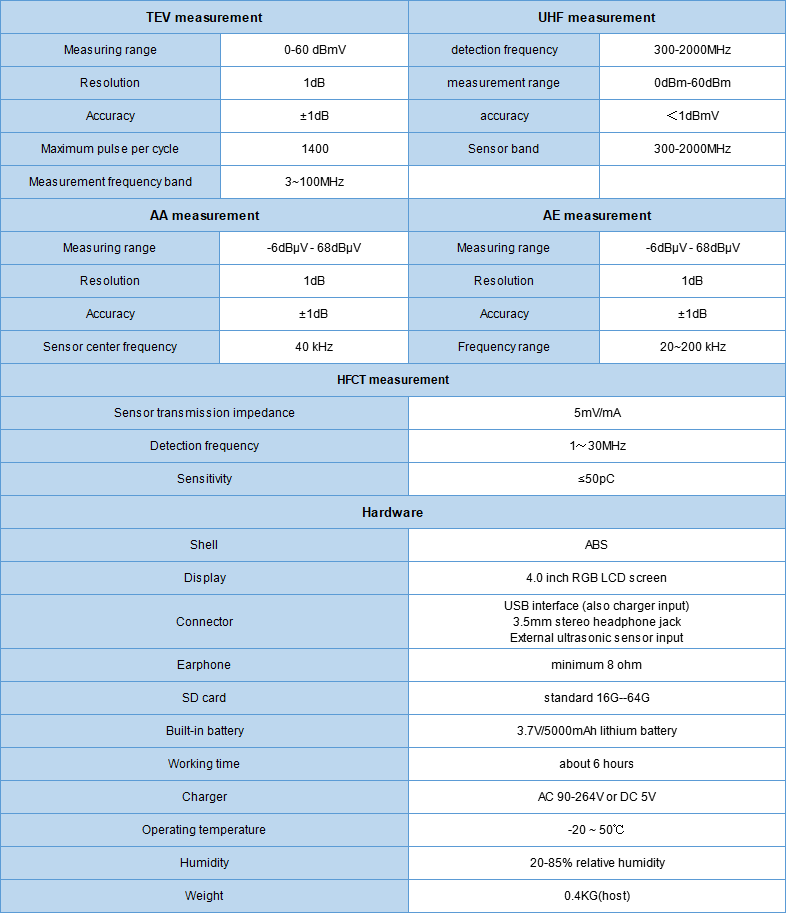

  Parameters



Sensor Application of HVJF-S Partial Discharge Detector




Product Application Pictures



Ⅴ  Standard

DL / T 500-2009 Technical conditions for voltage tester

GB / T 4208-2008 Classification of enclosure protection level (IP code)

GB / T 2423.1-2001 Basic environmental test regulations for electrical and electronic products Test A: Low temperature test method

GB / T 2423.2-2001 Basic environmental test regulations for electrical and electronic products Test B: High temperature test method

GB / T 2423.4-1993 Basic environmental test regulations for electrical and electronic products Test: alternating damp heat test method

GB / T 2423.5-1995 Environmental testing for electrical and electronic products Part 2: Test methods Tests and guidelines: Impact test methods

GB / T 2423.10-1995 Environmental testing for electrical and electronic products Part 2: Test methods Tests and guidelines: Vibration (sine) test method

GB / T 17626.2-2006 Electromagnetic compatibility test and measurement technology Electrostatic discharge immunity test (IEC 61000-4-2: 1995)

GB / T 17626.5-2008 Electromagnetic compatibility Test and measurement technology Surge (shock) immunity test (IEC 61000-4-5: 1995)

GB / T 17626.3-2006 Electromagnetic Compatibility Test and Measurement Technology Radio Frequency Electromagnetic Field Radiation Immunity Test (IEC 61000-4-3: 1995)

GB / T 17626.4-2008 Electromagnetic Compatibility Test and Measurement Technology Fast Transient Electrical Pulse Group Immunity Test (IEC 61000-4-4: 1995)

GB / T 17626.7-1998 Electromagnetic compatibility Test and measurement technology Power supply system and connected equipment Harmonic and interharmonic wave measurement and measurement instrument guide

GB / T 19862-2005 Industrial automation instrument insulation resistance, insulation strength technical requirements and test methods



Ⅵ  Attention

The HVJF-S Pro01 partial discharge detector is used for the detection and evaluation of the insulation status of high-voltage switchgear, ring network cabinets, transformers, GIS, overhead lines, cable terminals, cable branch boxes and other equipment. There are the following precautions when using this device:

☀ Please use indoors with a temperature of -20 ℃ ~ 50 ℃ and a relative humidity not exceeding 80%;

☀ Please stay away from flammable and explosive dangerous goods;

☀ Please charge the instrument when it is powered on for the first time, and only turn on when the charging indicator is on;

☀ To prevent interference or leakage, please turn off the power switch when charging;

☀ If the liquid and corrosive substances come into contact with the instrument, it should be immediately stopped and shut down, and handled by a professional;

☀ All connectors are imported connectors, and they should be plugged in and out. Do not rotate, shake the connector, or pull the cable forcefully. The plug connector is moderately strong and should be inserted into place when plugged

☀ All mainframes and accessories must not be disassembled. If it is really necessary, it needs to be disassembled by our after-sales service personnel.


FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
