HVPD-14 Partial Discharge Analyser

I Product overview

HVPD-14 partial discharge analyzer is a new generation digital analyzer with high performance and new technique. This product is a desktop with advantages of multi-interface, TFT LCD display, reliable system, low fault rate. In addition to measure the partial discharge of high voltage electrical equipment, it also can fix a accurate position on the faulted equipment, there is an expert analysis system in the product to judge different discharge types correctly, it also can be used to monitor the high voltage electrical equipment such as high voltage transformers continuously online. It gathers the functions of partial discharge measurement, location, monitor together and makes it come true.

This partial discharge analyzer is the dedicated product to measure and analyze the insulation ability of electrical equipment. This system adopts modern electronic and computer integrated technology with the functions of signal amplification(analog signal, electronic signal, digital signal), filtration, data sampling, data processing, figure display, test report generation automatically so that it may finish the measurement, location and analysis of the partial discharge.

The discharge device applicable scope, test method, test circuit, technical performance parameters fully meet the national standard, the international standard IEC270 GB7354-2003 "measurement of partial discharge (Partial Discharge measurements)" and "requirements" guidelines for the measurement of partial discharge of power equipment DL 417-91 standard field.

 More information:

Project, News, Video，please kindly click the letters to view:

Product: DIGITAL / ULTRASONIC PARTIAL DISCHARGE TEST DEVICE

Tutorial Video Of HVPD-12 Digital PD Detector

II Quoted Standard

Ø  IEC60270 / Partial Discharge Measurements

Ø GB1094 / Power Transformer

Ø IEC6067.11 / Dry Type Transformer

Ø IEC60885-3 / Whole Extruded Cable Partial Discharge Tests

Ø GB1207 / Potential Transformer

Ø GB12706.4 / Power Cable Attachment Test Requirements

Ø GB/T3048.12 / Cable Electrical Performance Partial Discharge Tests

Ø GB/T16927 / High Voltage Test Technique

Ø GB/T7354 / Partial Discharge Measurements

Ø GB1208 / Current Transformer

Ø DL417 / EPU Partial Discharge Measurement Guides

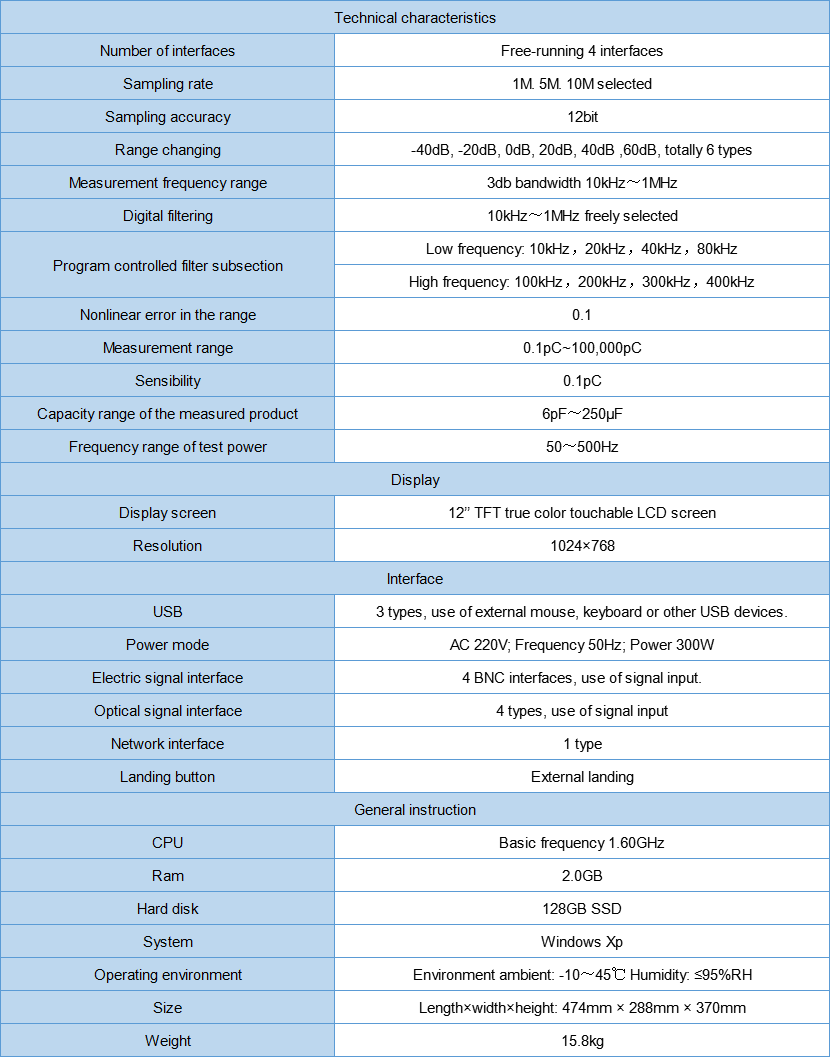

III Technical Parameter

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
