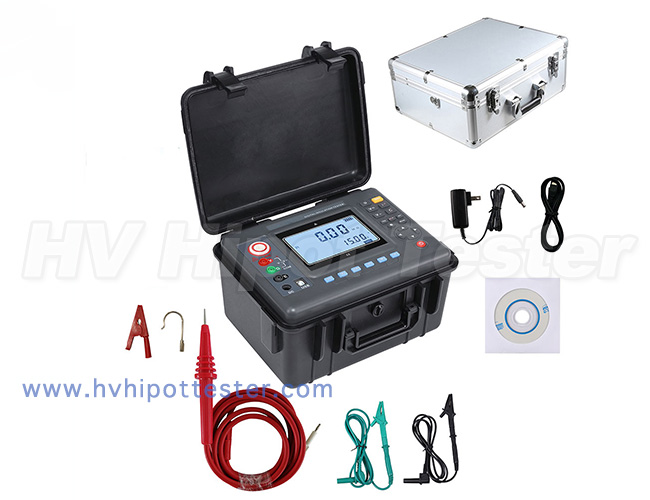

HVIR-45 Series New Digital High Voltage Insulation Tester

Ⅰ、Introduction

HVIR-45 Series Digital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring DC voltage, AC voltage, absorption ratio and polarization index of DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability. Moreover, it has a shockproof, dustproof, moisture-proof structure and is a commonly used and indispensable instrument for telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.At the same time, it can output a variety of different voltage levels with the step-adjusting voltage function (for example, 15KV models can generate 12KV levels, which can be used more widely).

Digital insulation resistance meter consists of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels). DC voltage measurement range is 0 ～ 1000V, AC voltage measurement range is 0 ～ 750V. DC current measurement range is 100pA-6mA. Capacitance measurement range is 10nF-50nF.

 More information:

Prduct, Video, News, Project，please kindly click the letters to view:

Product: Insulation Resistance Meter

Tutorial Video Of Insulation Resistance Meter

News: Insulation Resistance Meter

PROJECT: Insulation Resistance Meter

Ⅱ、Range & accuracy

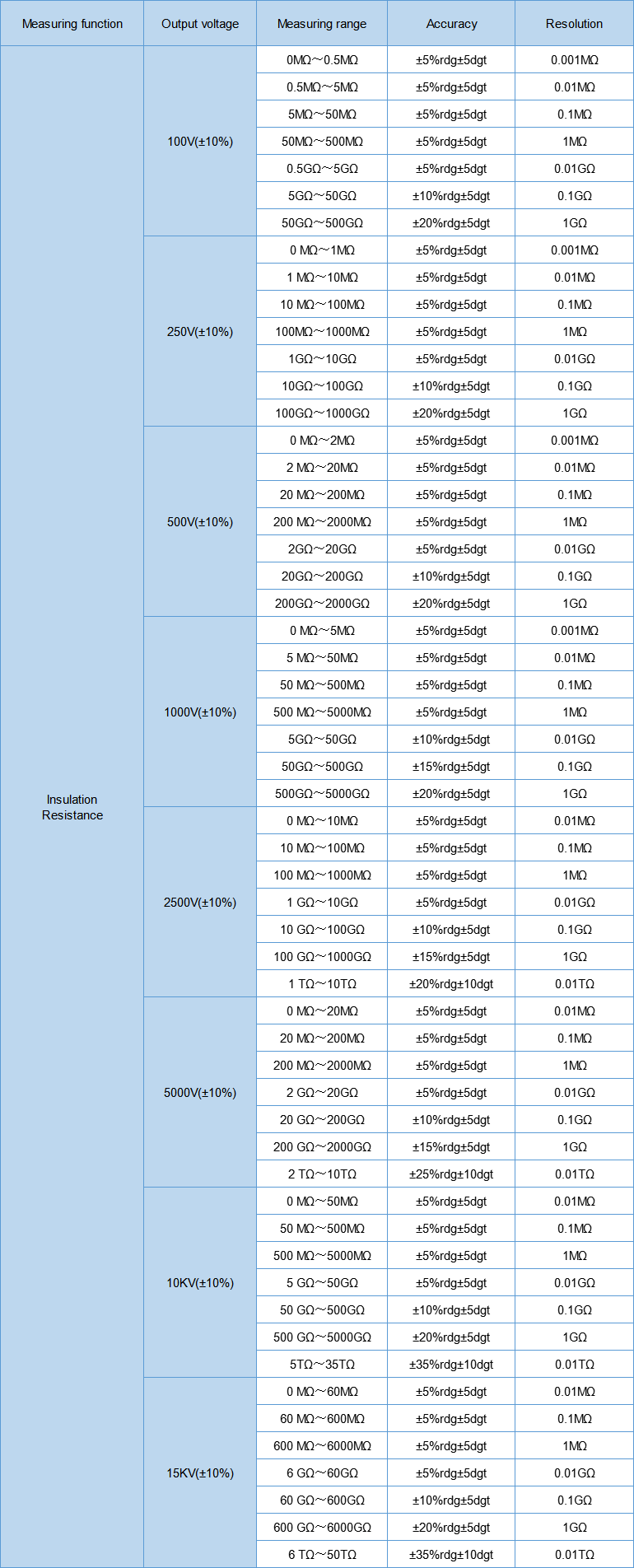

1. Insulation Resistance Range andAccuracy（notice：The test time of the last two test ranges of each voltage range is greater than 180s）

Remark: Common electrical unit conversion

1 TΩ（Tera ohm）=1000GΩ=10¹²Ω

1 GΩ（Giga ohm）=1000MΩ=10⁹Ω

1 MΩ（Mega ohm）=1000KΩ=10⁶Ω

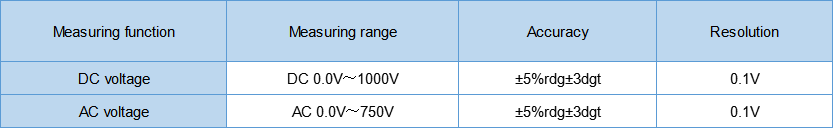

2. Voltage range & accuracy

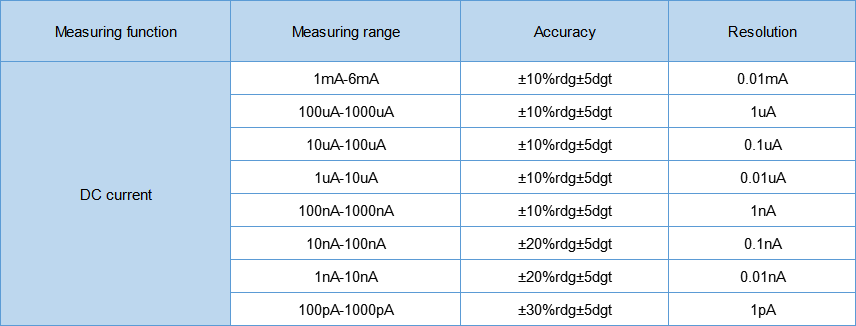

3.  Current range & accuracy

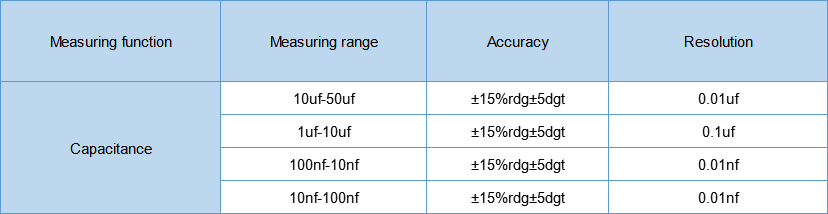

4. Capacitance range & accuracy

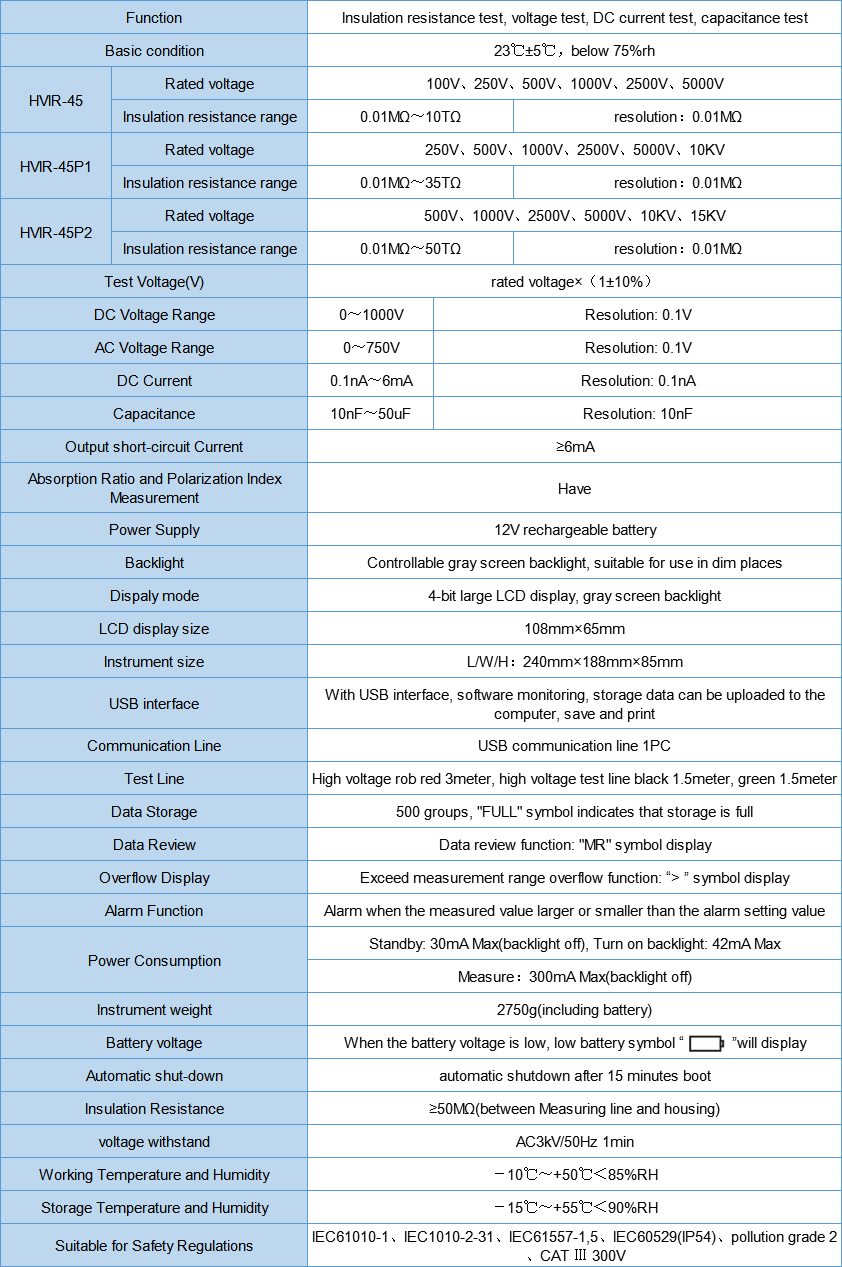

Ⅲ、Technical Specifications
