HV2670-II/ HV2671-II/ HV2672-II Digit Megohmmeter

Ⅰ Introduction

HV2671-II Digit Megohmmeter consists of medium and large scale integrated circuit with high output power and high short-circuit current value features. The output voltage is up to four grades. The built-in battery served as power supply become high DC voltage by DC/DC transformation, which goes from E pole to L pole via the object being tested. By this way, it produces a current from pole E to pole L, which converted by I/V and computed by the divider. The value of insulation resistance will display on the LCD finally.

 More information:

Prduct, Video, News, Project，please kindly click the letters to view:

Product: INSULATION RESISTANCE TESTER

News: A good dispatch of Megohmmeter Insulation Resistance Testers

PROJECT: Megohmmeter Insulation Resistance Tester

Ⅱ Features

1.High output power, strong load ability, and strong anti-interference ability.
The shell body is made of aldural/high-strength aluminum alloy, equipped with potential protection ring and fourth-order active low pass filter, it can play an effective role in shielding external power frequency and strong electromagnetic field. For the measurement of capacitive specimen, since the short-circuit current is greater than 1.6mA, it’s easy to rise the test voltage to the rating of output voltage. For the measurement of low resistance, it will not affect the test by using scaling method.

2. The meter is battery powered and the measure range is converted automatically. The easy-to-read panel and LCD display make measurement very convenient and fast.

3. The output short-circuit current of the meter can be measured immediately without estimation.

Ⅲ Parameters

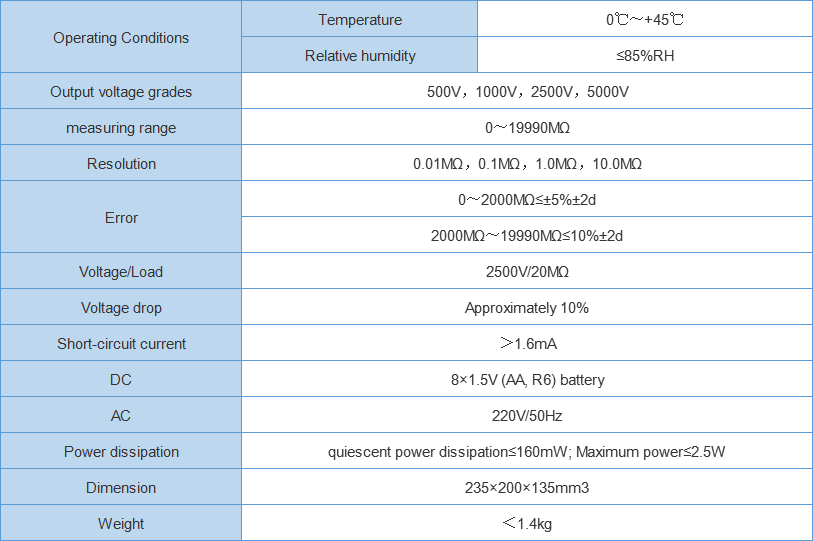

HV2670-II Digit Megohmmeter

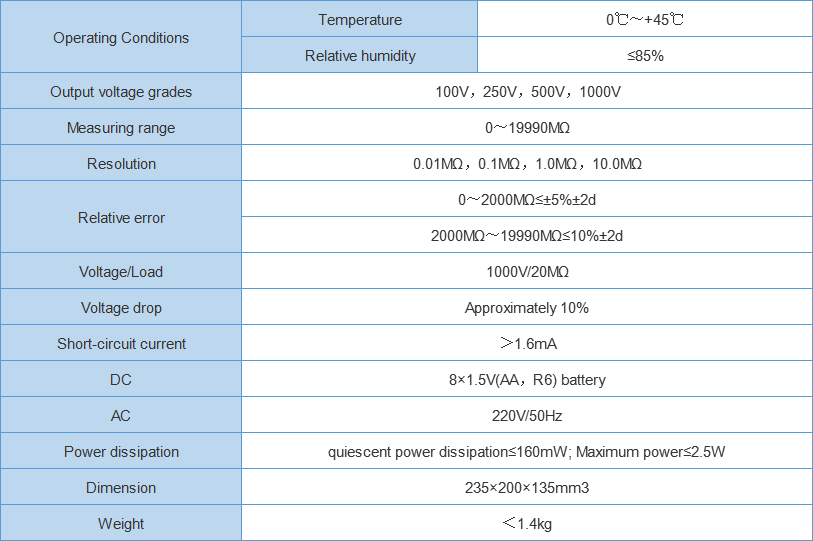

HV2671-II Digit Megohmmeter

HV2672-II Digit Megohmmeter

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
