HVBKV-II Series Insulation Resistance Tester

Microcomputer control, menu operation, large-screen LCD dot matrix display, and stable performance.With a strong ability to resist the interference, it is applicable to the measurement in an environment with severe electromagnetic interference.

Share:
Inquire Now

Product Description

HVBKV-II Series Insulation Resistance Tester

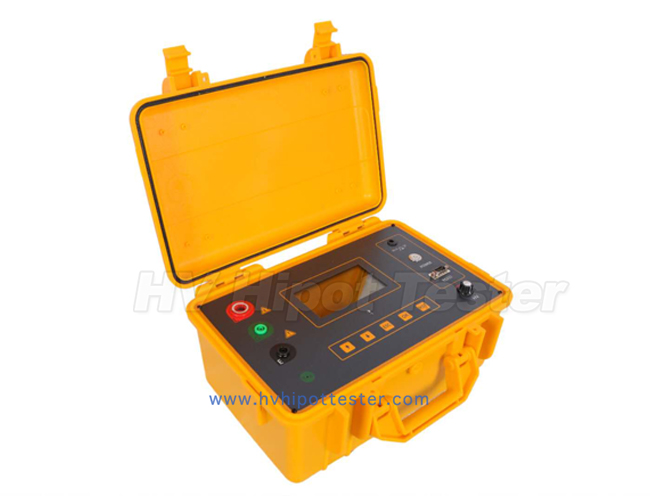

Appearance

The plastic case can be black or yellow color, the front panel can be black or grey as below pictures.





I Performance Features

1) It features of microcomputer control, menu operation, large-screen LCD dot matrix display, and stable performance, and it is the intelligent instrument.

2) With a strong ability to resist the interference, it is applicable to the measurement in an environment with severe electromagnetic interference.

3) It is equipped with 8 voltage output gears, namely 50V, 100V, 250 V, 500V, 1.0kV, 2.5kV, 5.0kV, (10.0kV).

4) When the high voltage is output, it can be regulated continuously as well.

5) Automatic measurement of R15, R60, R600, automatic calculation of DAR, PI.

6) It has strong load capacity, and the short-circuit current is about 5mA.

7) Measuring range: 0 to 10TΩ, and it can switch the range automatically.

8)The combination of simulation bar pointer and digital display can show the change trend of data and accurate measuring results

9) The testing time can be displayed at any time, and the buzzer will automatically tweet for reminder at every 15 seconds.

10) After the completion of measuring, it will discharge the high voltage automatically, and the discharging time of high voltage is no more than 30 seconds.

11) It can measure the ambient temperature, air humidity and the date and time of each testing automatically.

12) It can save 60 groups of measuring results, and the data will not be lost for 20 years.

13) It has RS232 serial interface, therefore it can communicate with the computer data.

14) 5 minutes of operation, the system automatically beepprompt shutdown.

15) It has the comprehensive perfect protection function, therefore the operational reliability is high.




 More information:

Prduct, Video, News, Project,please kindly click the letters to view:

Product: INSULATION RESISTANCE TESTER

News: A good dispatch of Megohmmeter Insulation Resistance Testers

PROJECT: Megohmmeter Insulation Resistance Tester

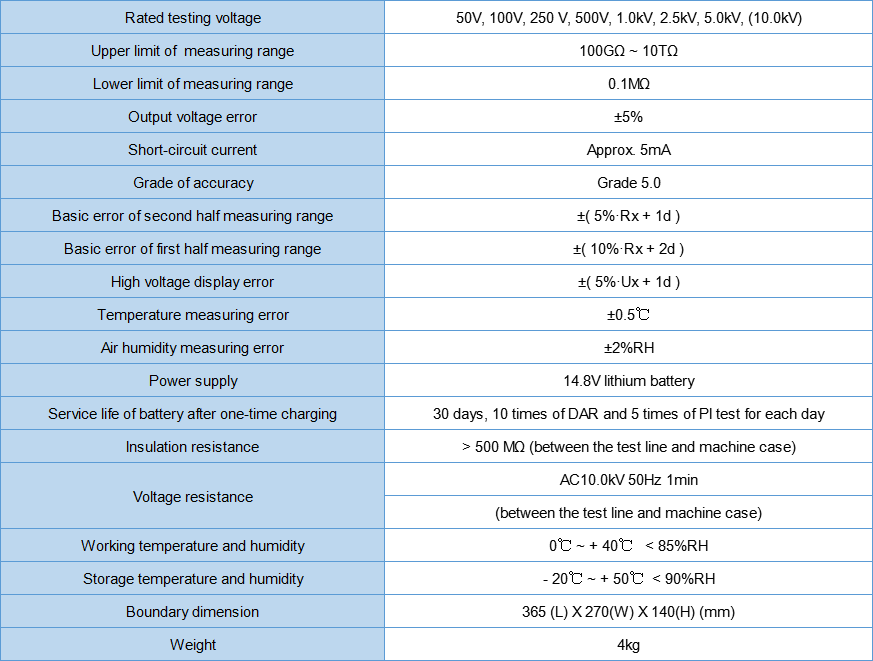

 II Technical indicator:






FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
