HVIR-35(5kv) /35P（10kv）Digital high-voltage Insulation Resistance Meter

Ⅰ Introduction

Digital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring AC voltage absorption ratio and polarization index of DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability. Moreover, it has a shockproof, dustproof, moisture-proof structure and is a commonly used and indispensable instrument for telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.

Digital insulation resistance meter consists of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels). Rated insulation test voltage range 250V ~ 10kV, insulation resistance measurement range 0.01MΩ ~ 2000GΩ. DC voltage measurement range 0 ~ 1000V, AC voltage measurement range 0 ~ 750V

 More information:

Prduct, Video, News, Project，please kindly click the letters to view:

Product: Insulation Resistance Meter

Tutorial Video Of Insulation Resistance Meter

News: Insulation Resistance Meter

PROJECT: Insulation Resistance Meter

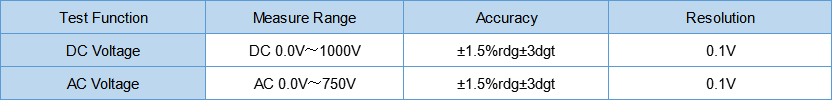

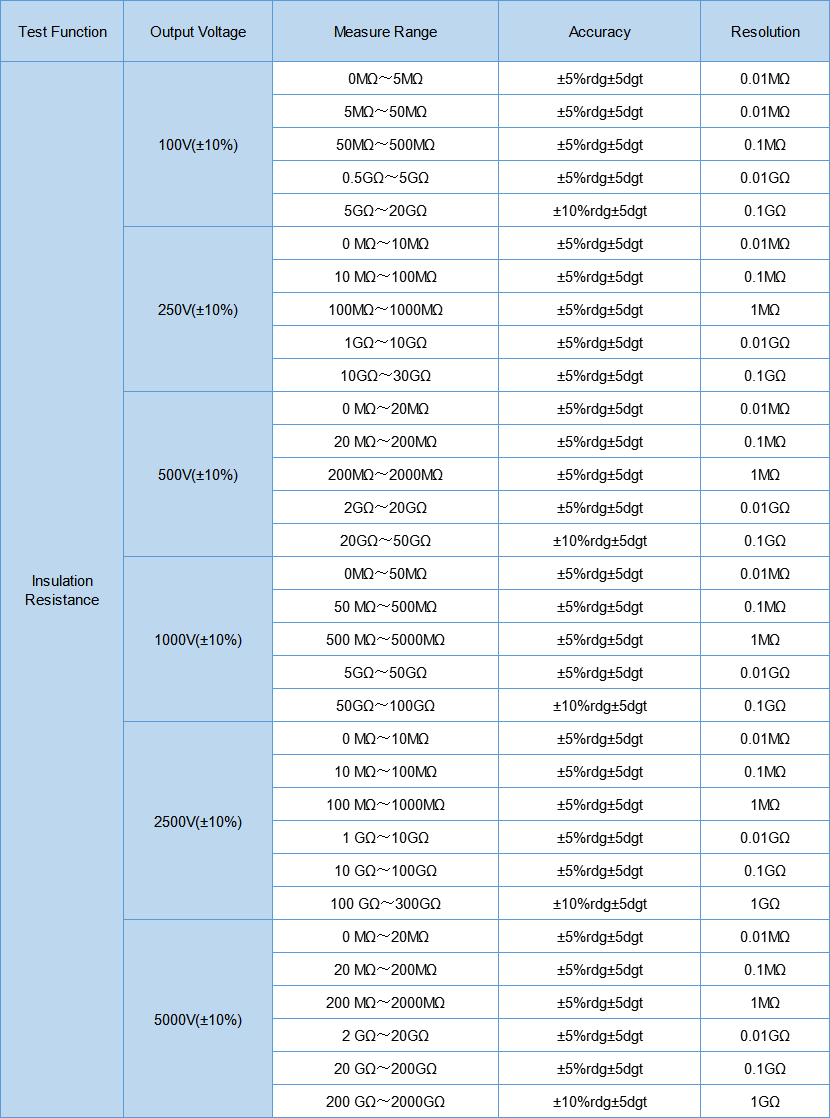

Ⅱ Measuring Range and Accuracy

Remark: Common electrical unit conversion

1 TΩ（Tera ohm）=1000GΩ=10¹²Ω

1 GΩ（Giga ohm）=1000MΩ=10⁹Ω

1 MΩ（Mega ohm）=1000KΩ=10⁶Ω

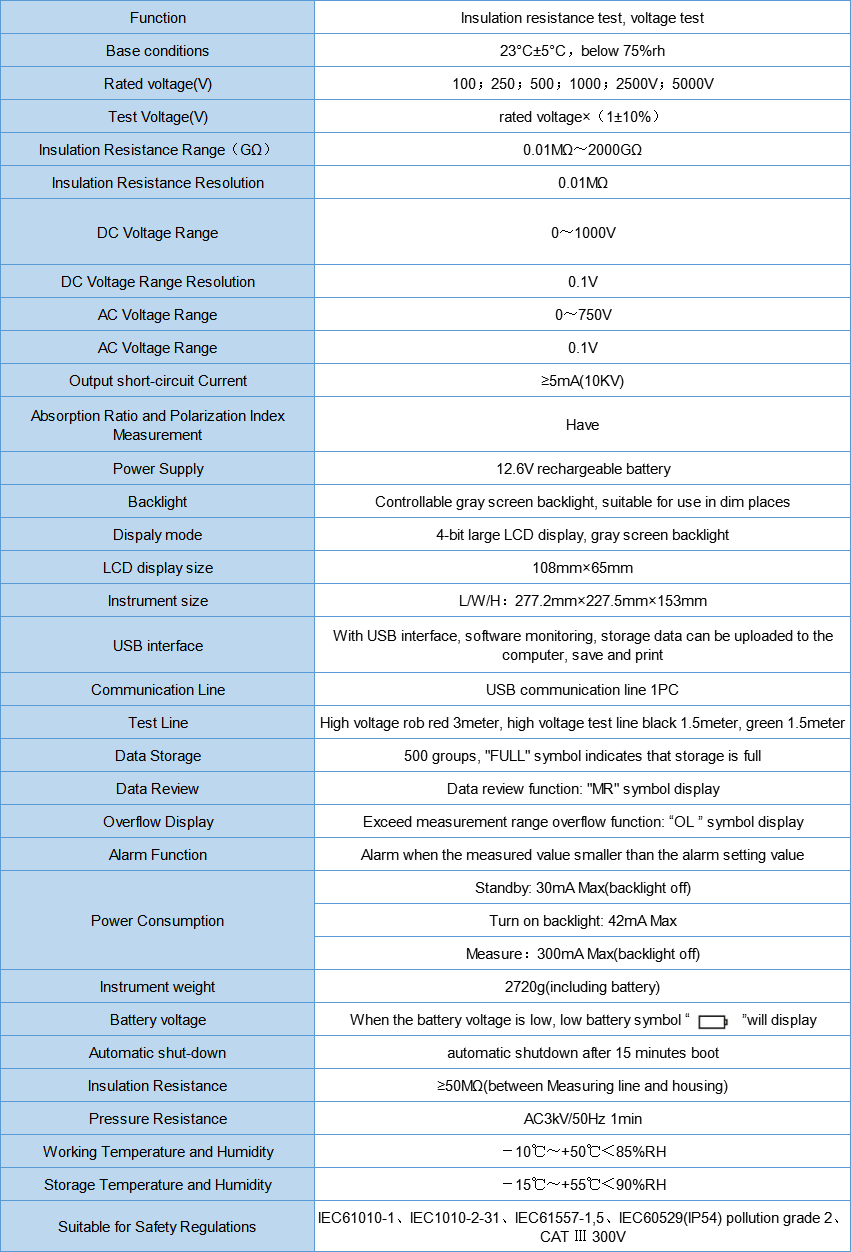

Ⅲ Technical Specifications

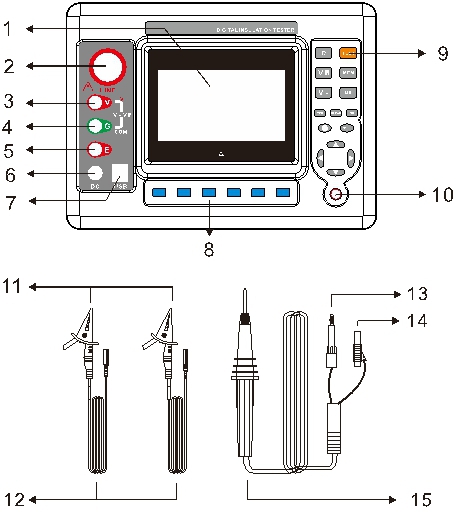

Ⅳ Structure

1. LCD display screen      2. LINE interface          3. V interface

4. GUARD interface         5. EARTH interface       6.changer interface

7.USB interface            8. Voltage select button    9.Test button

10.Power on/off button     11. Security Alligator Clip

12.Test line（green , black each 1PC）13．High voltage test terminal banana plug into LINE interface

14.Shielded cable connector plugged into GUARD interface (no connection required without this connector)   15.High voltage test line
