HV2520 Pointer Insulation Resistance Tester

It is an ideal insulation resistance tester to measure these equipment such as transformer, instrument transformer, generator, high voltage motor, power capacitor, power cable, arrester, etc.

Share:
Inquire Now

Product Description

HV2520 Pointer Insulation Resistance Tester



Ⅰ Introduction

With the rapid development of China's power industry, electrical equipment preventive experiment is an important part in protecting the safety operation of power system and maintenance. Insulation diagnosis is an important method to detect insulation defects or failure. Pointer insulation resistance tester is the special instrument to measure insulation resistance. JJG662-89 "insulation resistance meter (megger)" approved in May 1990 requires that insulation resistance meter is one of compulsory verification instruments. Nowadays the development trend of electrical equipment (such as transformers, generators, etc.) is that high capacity, high voltage, diversified structure and better seal. So insulation resistance meter (pointer) itself must have the characteristics such as large capacity, strong anti-interference ability, diversified measurement indexes, accurate measurement results, easy and fast measurement process, easy to carry and so on. The instrument produced by our company is equipped with ultra-thin taut suspension meter. It is an ideal tester to measure insulation resistance of these equipment such as transformer, instrument transformer, generator, HV motor, power capacitors, power cables, arrester, etc.


 More information:

Prduct, Video, News, Project,please kindly click the letters to view:

Product: INSULATION RESISTANCE TESTER

News: A good dispatch of Megohmmeter Insulation Resistance Testers

PROJECT: Megohmmeter Insulation Resistance Tester



Ⅱ Features

1.The instrument is used to do insulation test: when the voltage is 500V, the maximum tested value will up to 20GΩ; when the voltage is 1000V, the value will up to 40GΩ; when the voltage is 2500V, the value will up to 100GΩ.
2.When rated output voltage of HV2520 tester continuously load, the resistance can be as low as 4MΩ/8MΩ/20MΩ, which makes the instrument can accurately measure lower insulation resistance.
3.Automatic conversion range, dual-scale display, and LED display corresponding color, it is easy to read.
4.Equipped with ABS plastic casing using, the instrument has strong anti-interference. Portable design, compact structure, and attractive appearance
5.The application of ultra-thin taut suspension meter to the instrument makes it have strong shock resistance capability.
6.AC/DC dual-use, built-in rechargeable battery and smart charging module, the whole output power is high (C type).
7.It is an ideal insulation resistance tester to measure these equipment such as transformer, instrument transformer, generator, high voltage motor, power capacitor, power cable, arrester, etc.

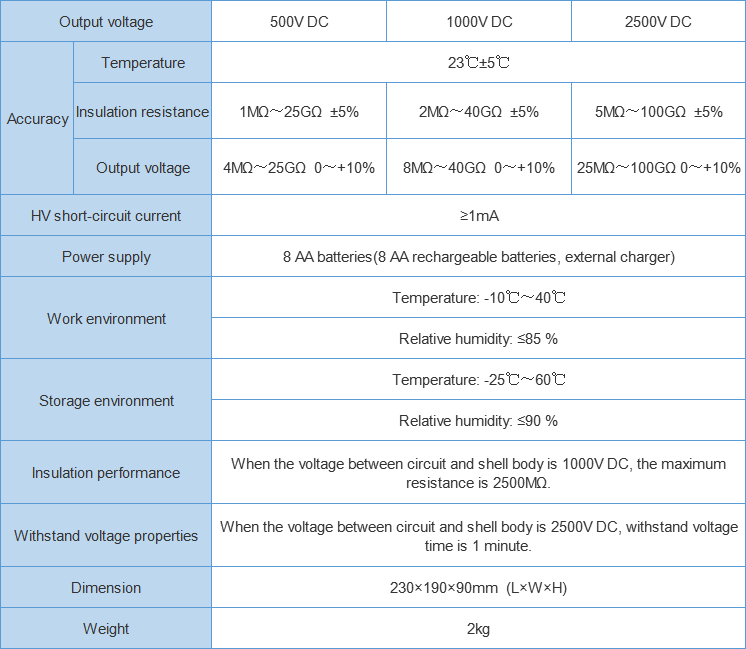

Ⅲ Parameters



FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
