HV2010 Intelligent Dual Display Insulation Resistance Tester

Ⅰ Introduction

HV2010 Intelligent Dual Display Insulation Resistance Tester produced by our company perfectly combines embedded industrial single chip real-time operating systems, ultra-thin taut suspension header and graphic dot matrix LCD display. The instrument having a variety of output voltage level (500V, 1000V, 2500V, 5000V), and is characterized by large capacity, strong anti-jamming, synchronized pointer and digital display, AC-DC dual-use, simple operation, automatic calculating various kinds of insulation indexes (absorption ratio, polarization index) and measurement results with anti-out power function, and so on. It is an ideal tester to measure insulation resistance of these equipment such as large-capacity transformer, instrument transformer, generator, HV motor, power capacitors, power cables, arrester, etc.

 More information:

Prduct, Video, News, Project，please kindly click the letters to view:

Product: INSULATION RESISTANCE TESTER

News: A good dispatch of Megohmmeter Insulation Resistance Testers

PROJECT: Megohmmeter Insulation Resistance Tester

Ⅱ Features

1.The instrument has a variety of output voltages: HV2000(2500V/5000V), HV2010(500V, 1000V, 2500V, 5000V).The measurement range of resistance is 0～200GΩ, and it can automatically shift with corresponding indication.
2.Insulation resistance in two ways simultaneously displays. The application of the ultra-thin taut suspension structure to pointer makes it have strong shock resistance. Through mechanical pointer, it is easy to observe insulation resistance range; dot matrix LCD screen can be used to guide the user operating the instrument and can accurately display the measurement results.
3.Perfect combination of mechanical pointer and LCD screen. Dual-scale display, automatic range conversion. Colorized scale is easy to read, and LED display corresponding color.
4.Adopting embedded industrial SCM and real-time operating software system. The instrument owns advantages of high automaticity, strong anti-jamming capability, automatic calculating the absorption ratio and the polarization index without manual intervention.
5.User-friendly, all measurement results with anti-power-down function, can store 20 consecutive measurements.
6.When the instrument generates high voltage, there will be a prompt tone output.
7.Built-in residual high voltage discharge circuit, completed the test, it will automatically release the residual voltage on the measured device.
8.AC/DC dual-use, configure rechargeable battery and AC adaptor.
9.Portable designs facilitate field operations.
10 .High voltage short-circuit current ≥3mA, It is an ideal insulation resistance tester to measure these equipment such as transformer, instrument transformer, generator, high voltage motor, power capacitor, power cable, arrester, etc.

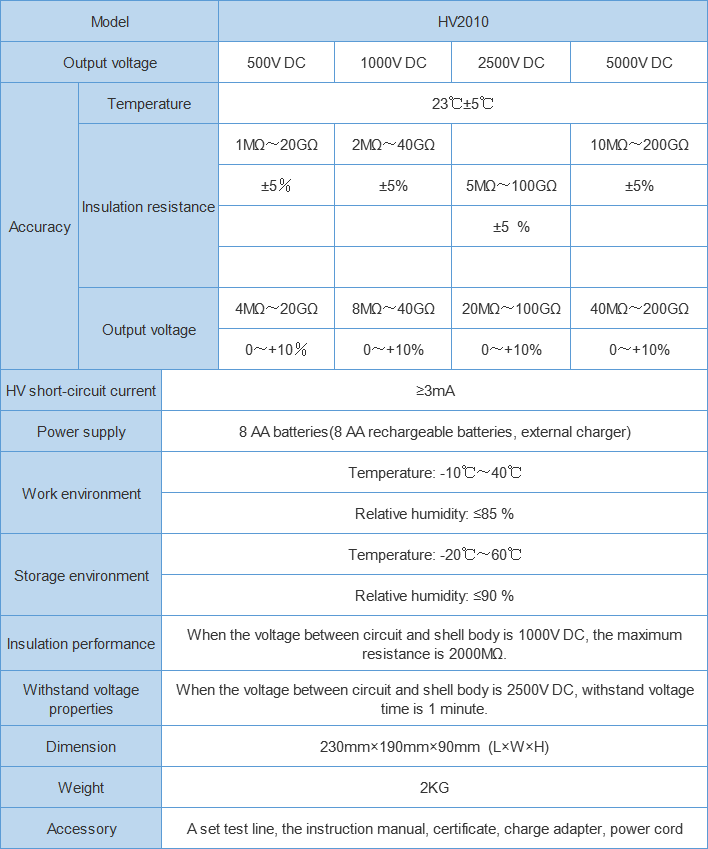

Ⅲ Parameters
