HVCE-4815 MINI Battery Discharger & Capacity Tester

Ⅰ Product Application

HVCE-4815 Battery Load Tester
1.for 20-60V battery groups
2.current range: 0-150A
3.touching LCD
4.wireless monitor

Ⅱ Main Features

1. Adopting Bluetooth wireless battery monitoring technology, available for 2V/6V/12V batteries voltage monitoring

2.


3. Each wireless module can monitor 4 batteries simultaneously, comparing with the traditional method that each module only can monitor 1 battery, the new wiring operation become easier because the quantity of new modules needed is only a quarter of old-fashioned modules.(only 6 new wireless modules for 48V battery groups)

4.


5. Available for offline & online discharging test of multiple battery groups (up to 4 groups) HVCE-4815can simultaneously record the actual discharge currents of each battery groups in the test. (As accessories, extra current clamps are needed for multiple groups testing)

6.


7. The discharge current is continuously adjustable and automatically keep stable,during the online discharging, the current displayed in LCD = the discharge current of battery group = the current created by main machine + the current of the actual load. Because during the discharging the current of the actual load probably changing according the decrease of the online voltage, HVCE-4815 main machine can automatically adjusted to keep the current stable in the whole testing.

8.


9. Offering manual function for setting the battery number which voltages below the threshold value, this design could help you to locate more lag batteries in once constant discharging.

10.


11. Support to connect several HVCE-4815 extension loads in parallel, HVCE-4815 can connect more than one extension loads and fulfill the synchronization control in the discharging.

12.


13. Applying the electric heating component made by aero-alloy for the power consumption section, new generation material level up the coefficient of safety and the transition rate between electricity and heat, meanwhile reduce the volume and weight.

14.


15. Automatic calculating function for the discharging current, HVCE-4815 installs the discharge current formulae for all hourrates internally, so the setting interface can tell users the suitable discharge currents without manual calculation according the marked capacities of battery groups and the testing hourrates.

16.


17. Real scan and display the voltage data of each battery during the discharging, and display the histogram of all batteries to follow the battery voltage tracks in whole discharging process, using the different color to highlight the lowest and the highest voltage can simplified the analysis of the variety of battery voltages.

18.


19. 5.7 inch colorful touching LCD screen, the big touching screen can fulfill the click operation on the screen easily and directly, and show all parameters and the voltage histogram in the discharging process.

20.


21. Intelligent judge program, HVCE-4815 can identify the situations that the battery voltages reach the threshold value or the signal missing by manual mistake. Avoiding manual interruption in the discharging, this revolutionary program makes the test stable and smooth.

22.


23. The presetting function for discharge parameters,HVCE-4815 provide 8 locations for setting up all discharge parameters in advance, this design can skip the setting procedures for the same discharging, simplified the operation and speed up the test.

24.


25. Flexible power supply mode:adopting AC & DC double power supply modes is available for the discharge test of a variety of telecom equipment rooms and base stations.

26.


27. 8M internal memory,HVCE-4815 main machine can record several sets of data independently, and the menu interface provides some management operations like reviewing, analyzing and deleting.

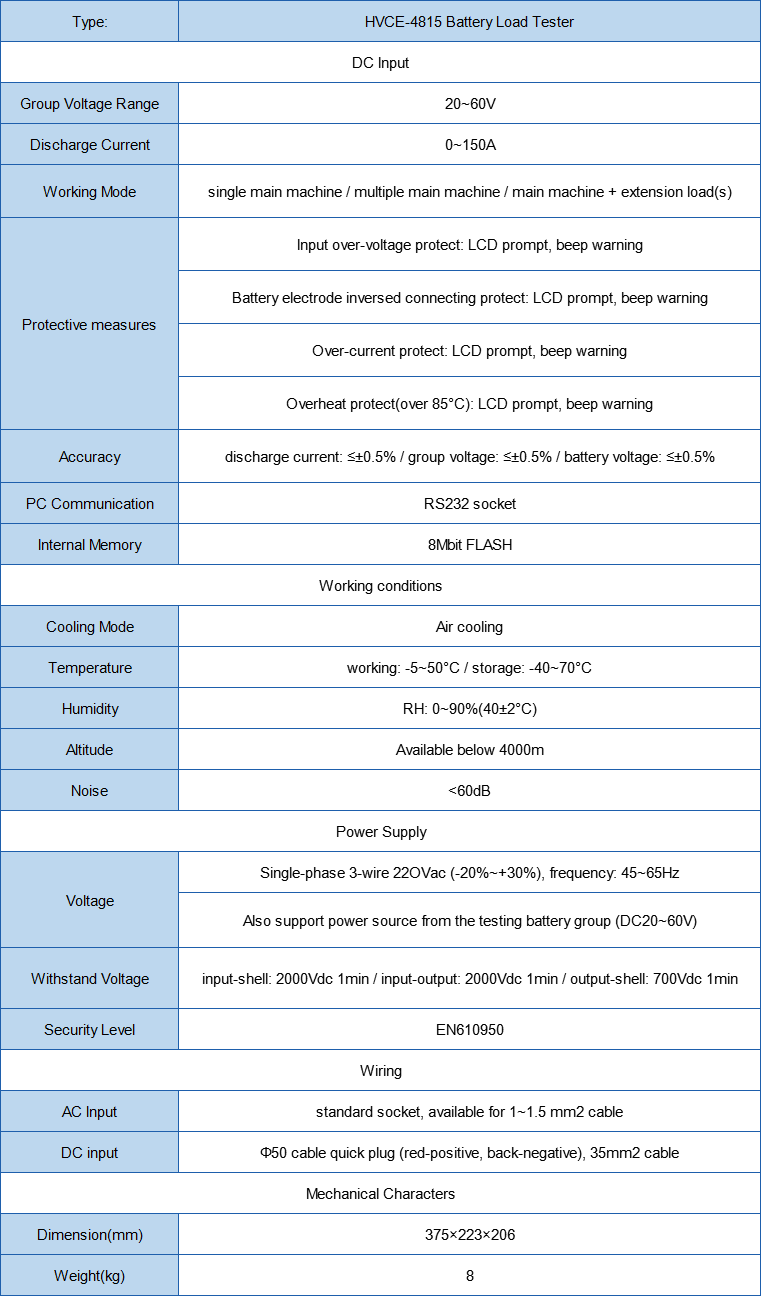

Ⅲ Specifications

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
