HVCE-8X0 Battery Discharger & Capacity Tester

Ⅰ Introduction

5.7 inch LCD touchscreen for easy operation and showing various parameters real time

Selectable discharge mode: constant current / power / resistance

4 adjustable stop pointsand multiple alarm designs to control the discharge process intelligently

Support RS232 real time monitoring by PC or USB download data after discharge

PC software for capacity evaluation and report generation

Optional wireless modules for 1.2V/2V/6V/12V cells voltage real-time measuring

Ⅱ Features

Wide Range: HVCE-8X0 series can cover 10V~480V for multiple batteries test requirements like telecom (48VDC), powerutilities (110VDC, 220VDC), UPSs (300-60 VDC), traction batteries(12-96VDC)etc.

Big size touch LCD can display all real time data and graphs and support the click operations directly,humanized input method and menu designs simplified operating process.

Wireless modules for cells voltage measuring are available for 1.2V/2V/6V/12V batteries voltage monitoring during discharge test.

Each wireless module can monitor 4 batteries simultaneously. Compared with the traditional cable voltage measuring method that each module only can monitor 1 battery, the new wiring operation is much easier.

With proper number wireless modules, main tester can real times can and display the voltage data of each battery during the discharging, and display the histogram of all batteries to follow the battery voltage tracks in whole discharging process.

The presetting function for discharge parameters provides 8 locations for setting up all discharge parameters in advance, this design can skip the setting procedures for the same discharging, simplify the operation and speed up the test.

Selectable Discharge Modes HVCE-8X0 series provides 3 discharge modes for different test requirements: Constant Current / Constant Power / Constant Resistance.

Multiple Adjustable Stop Points HVCE-8X0 offers 4 adjustable points for test stop points to avoid excessive discharge: Group Low Voltage /Discharge Time / Discharge Capacity / Cell Low Voltage

Multiple Protections & Alarms: Over Input Voltage/ Overload/ Overheat/ Reverse Polarity HVCE-8X0 series provide sample protective measures for various abnormal situations during discharge. Automatic termination, LCD prompt and beep warning would assist users to make proper treatments.

Internal Memory HVCE-8X0 series can save several independent discharge records automatically without Laptop monitoring, non-volatile internal memory guarantees the data security even in unexpected shutdown.

Extendable & Compatible Connected with clamp current, HVCE-8X0 series cooperate other types in HVCE-S series or any other load units, and clamp current can count external current in.

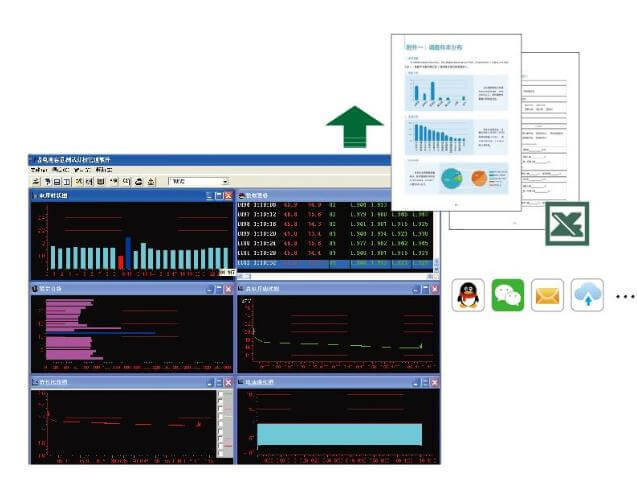

DATAANALYSIS SOFTWARE

Support data downloading and analyzing through realtime communication or USB memory devices

The software interface includes: battery voltages curve and bar chart, battery resistances bar chart, group voltage curve, current curve, capacities histogram, data form and so on.

Powerful capacity estimating function, the software can predict the capacity of each battery in the tested group.

The software shows the data by various ways like barcharts, curve, and form. And users can magnify or minify any windows to view more details.

Automatically create EXCEL data report, easy to send or download the data.

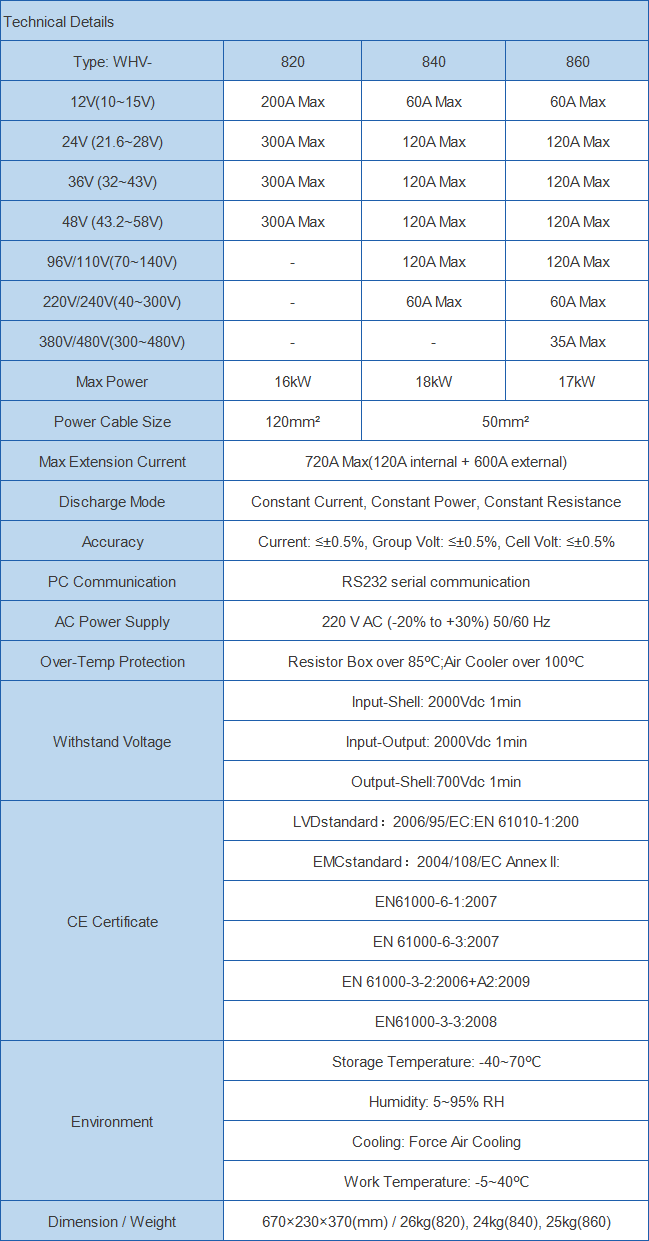

Ⅲ Specification
