HV-TC Cable Fault Detector

Ⅰ Introduction

It provides a complete set of overhead line fault location solutions, integrating four functions: fault diagnosis, AC location, DC location, DC voltage withstanding test and AC voltage withstanding test. Innovative AC location mode, wireless method for low resistance fault detection, detect the characteristic signal right below the line, no need to hang the sensor to the line. It is simple operation, easy to use.

For a high-resistance fault that occurs when a smart switch (with ground PT) is installed, the AC location plus booster is used to locate without removing the PT. Device supports large capacity lithium battery built into the transmitter, which is easy to use and carry.

Device components

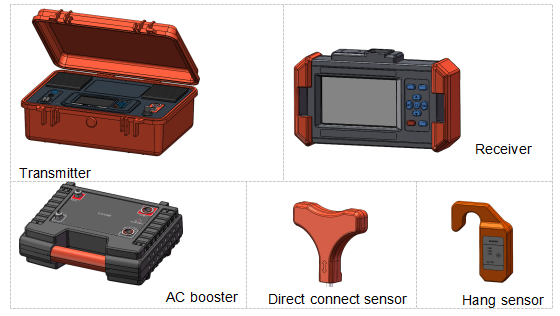

Mainly composed of transmitter, receiver, AC booster, direct connect sensor, hang sensor, ARC grounding adapter and accessories.

 More information:

Project, News, Video，please kindly click the letters to view:

UNDERGROUND CABLE/LINE/PIPELINE TESTING INSTRUMENT

VIDEO: CABLE/LINE/PIPELINE TESTING INSTRUMENT

NEWS: CABLE/LINE/PIPELINE TESTING INSTRUMENT

PROJECT：CABLE/LINE/PIPELINE TESTING INSTRUMENT

Video of How to Use HV-TC Combo Cable Fault Location System，please kindly click the letters to view:

VIDEO 1: HV-TC1 TC2 Cable Tracker and Fault Locator

VIDEO 2: HV-TC Cable Fault Detector and HVG HV Generator

Video：Finding underground cable fault using HV-TC1 TC2 Cable Tracker and Fault Locator

Ⅱ Features

1、 6-35kV overhead line fault detection and location

2、It integrates five functions: fault diagnosis, AC location, DC location, AC voltage withstand test, and DC voltage withstand test

3、Fault diagnosis:

Instruct an appropriate localization method

Circuit insulation resistance and capacitance measurement

4、AC location - direct output (ground with low transition resistance) :

Transmit signal: Active injection of high-power special low-frequency AC signal.

Receive signal: Segment detect along the line, no need to hang the sensor to the line

Efficient work: no need to mount the pole, greatly improve the test efficiency, reduce the working intensity

5、AC location - external AC booster output (the line has ground PT, medium transition resistance ground) :

Transmit signal: Active injection of high-power special low-frequency AC signal

Receive signal: Segment detect along the line, it is necessary to hang the sensor to line

It is not necessary to remove the line ground PT

Innovative resistive current content and current amplitude comparison, to solve a wider range of faults

6、DC location (high/low transition resistance grounding and arc grounding) :

Transmit signal: Active injection of high-power pulsating DC signal

Receive signal: Segment detect along the line, it is necessary to hang the sensor to the line

All-around location model, especially to solve the problem of ARC grounding location.

7、DC voltage and AC voltage

Acceptance tests after troubleshooting

8、Transmitter supports automatic discharge stop function, ensuring safe operation.

9、Transmitter provides over-current protection and over-temperature protection function

10、Transmitter is built into a high-capacity lithium-ion battery pack, making it easy to carry around.

11、Receiver sampling all digital high sensitivity signal processing, the criterion is clear and intuitive.

12、Device has data memory function, which is not lost during power failure, and pinpointing is convenient.

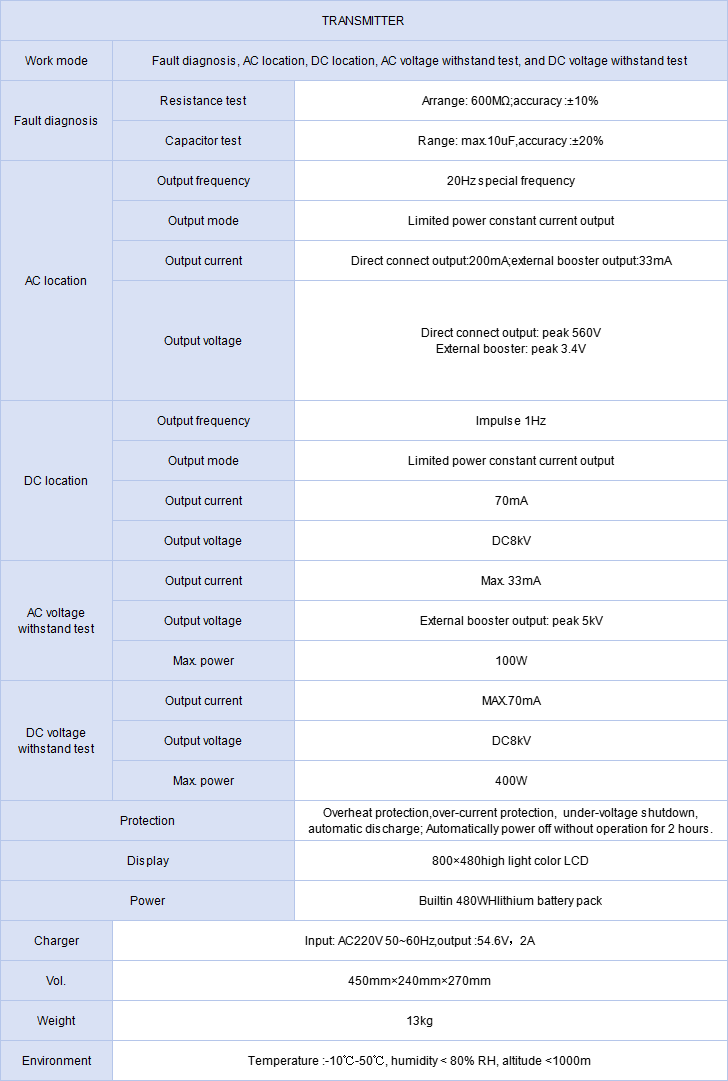

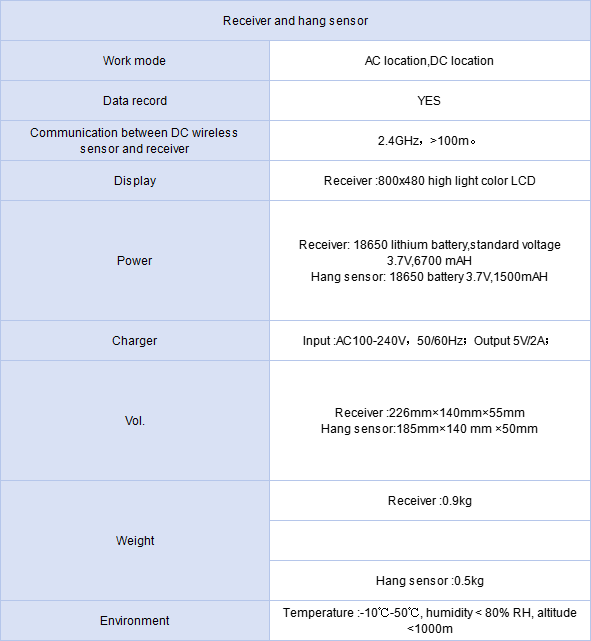

Ⅲ Parameters
