HVHX-800 Wireless HV Phase Tester

Ⅰ Introduction

HVHX-800 HV phase tester, used in power lines, phase tests and phase sequence tests for substations, with functions of phase testing, phase sequence testing, electrical inspection .with strong anti-interference, in line with (EMC) standards, adapt to a variety of electromagnetic interference occasions. High voltage phase signal will be taken out by the collector, discharge directly after treatment. Received by instrument and compare the phase, and identify the results, real-time display difference of phase angle and vector. This product use wireless transmission technology, safe, reliable, fast and accurate.

Ⅱ Features

1 Measurement voltage: 10-500kV (according customer order).
2 Accuracy: self-calibration error≤±3°
3 Sampling speed: 10 times/S.
4 Time setting: Easy for users to browse, view historical data.
5 Backlight time settings: on, off, set within 0-999 seconds.
6 Automatic shutdown settings: Never, within 0-999 minutes setting.
7 In-phase: ≤20°is in-phase, (phase threshold within 0-900,  system default value is 20).
8 Out-phase: ＞20°is out-phase, (phase threshold within 0-900,  system default value is 20).
9 Field calibration function: field calibration for measured lead to ensure the accuracy of the phase angle.
10 Handset detectors and X, Y detectors transmission distance: X≤150m, Y≤150m.
11 Multi-mode design, applicability, safer, and more convenient.
12 Unique interactive interface, simple operation
13 FCC antenna design, signal stronger, easier to penetrate walls , doors or obstacles blocking
14 Double shielding, strong anti-interference, in full compliance with EMC standards.
15 Charts and data display, easier to read.
16 Qualitative measurement: sound and light signal display.
17 Quantitative measurements: real-time display of phase angle difference, error≤5°
18 Phase sequence check: Shun phase sequence, reverse phase sequence (120, 240°)

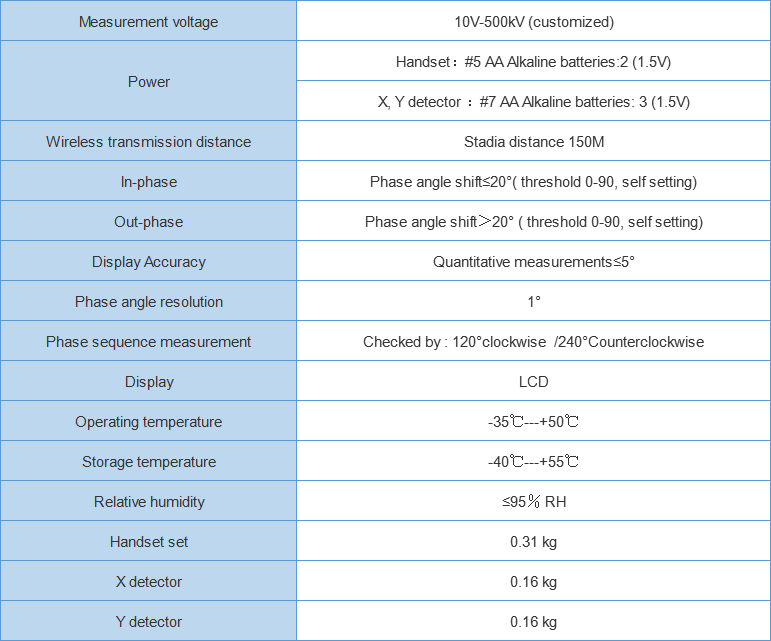

Ⅲ Parameters

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
