HVLR-60,60P DC Low Resistance Meter (Micro-Ohmmeter)

mainly used to measure the cable resistance, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer windings, and metal riveting resistance

Share:
Inquire Now

Product Description

HVLR-60,60P DC Low Resistance Meter (Micro-Ohmmeter)



Ⅰ Introduction

DC low resistance meter is also known as micro-ohmmeter, ohmmeter, DC grounding resistance tester, using the most microprocessor technology, four-wire test, safe and reliable.It is mainly used to measure the cable resistance, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer windings, and metal riveting resistance, the test of the connection resistance between metal components, the low resistance test, and the ground to ground Connected conductor resistance test, contact resistance test.



DC low resistance meter consists of a host computer, monitoring software, test leads, and communication lines.The mainframe large-screen LCD display is clear at a glance.Can store 500 sets of data, resistance measurement range: 0.001mΩ~300.0KΩ.The host computer software has the functions of reading, viewing, saving, and reporting historical data.

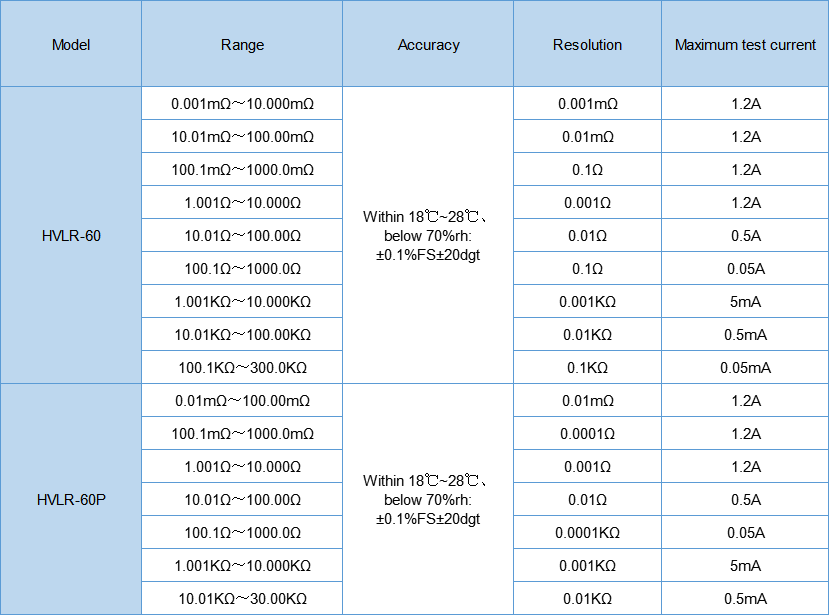

Ⅱ Range and Accuracy



Notewithin 18℃~28℃below 70%rhwithin -10℃~50℃above 80%rh: ±0.2%FS±20dgt

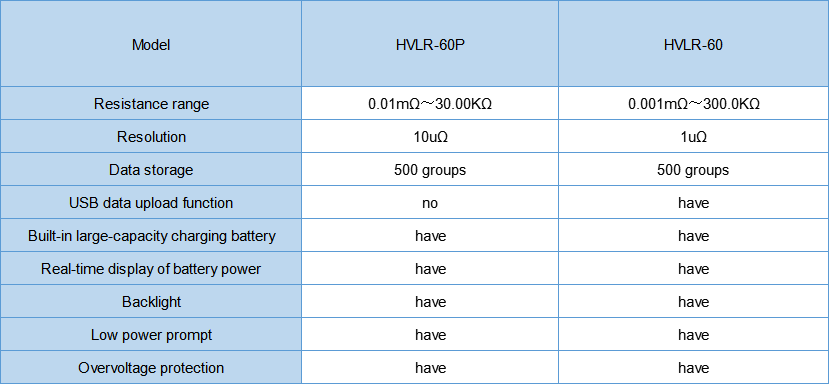

Ⅲ Model contrast

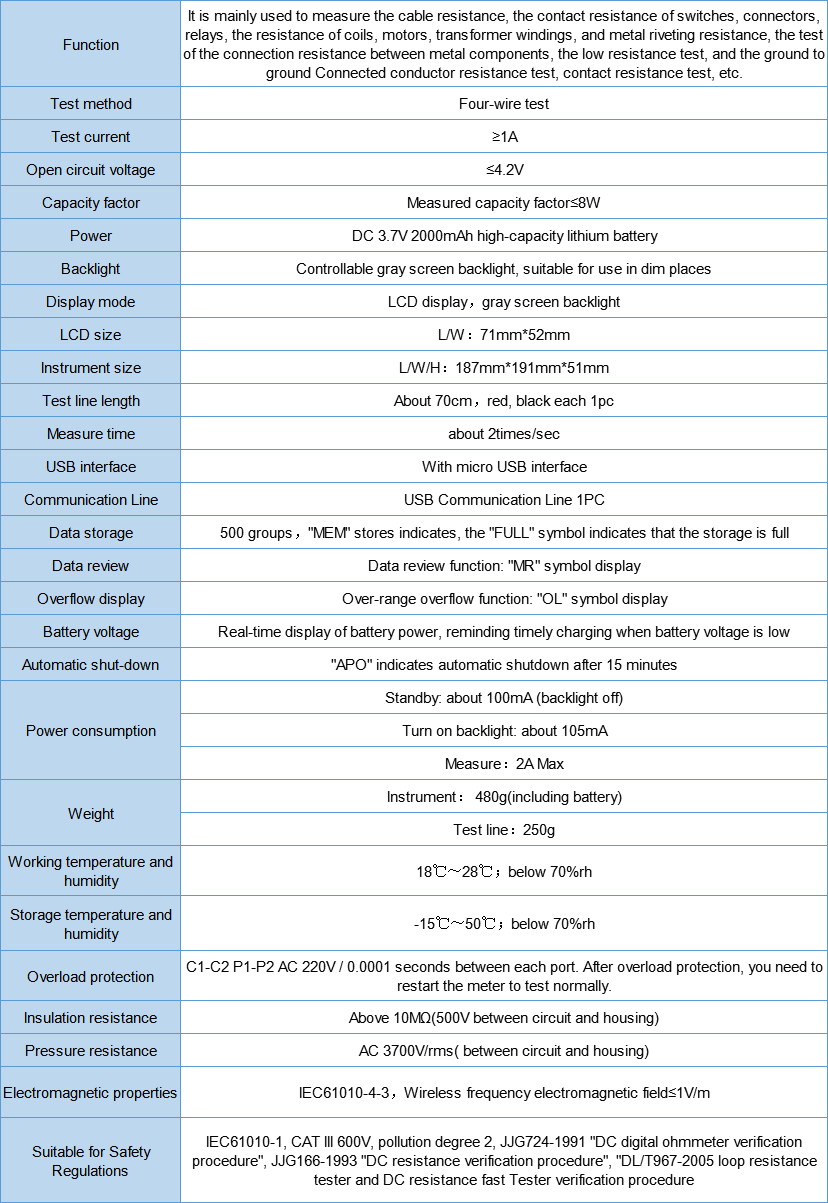

Ⅳ Technical Specifications




FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
