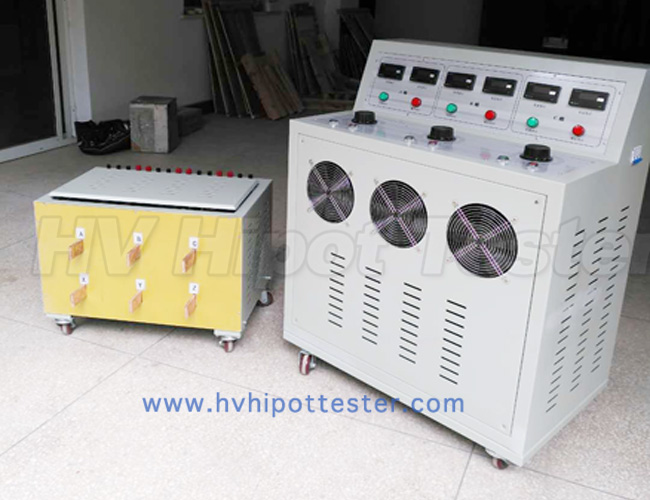

HVTR-2500A Three Phase Temperature Rise Test High Current Generator

Ⅰ Application

HVTR-2500A Three Phase Temperature Rise Test High Current Generator is used for manufacturers testing the high and low voltage electrical products before delivery. It provides two functions of large current and temperature test. Convenient for user operation, improves working efficiency. It applies to power plant, power distribution station, electrical appliance manufacturing factories, scientific researching institutes, laboratory. Multi channel temperature recorder uses digital synchronous sampling technology, with advantages of rapid test speed, high precision, convenient to operate, good appearance.

Ⅱ Features

1.This product is composed of large current generator, voltage regulator, temperature tester, industrial controlling computer operation system.
2.Voltage and current displayed by industrial controlling computer software, precision level is 0.5.
3.With zero position starting up protection function and emergency stop function.
4.Software test time self setting and with prompting function.
5.After current setting, any deviation, software can automatically adjust according to the parameters set in advance.
6.Prevent strong magnetic interference.
7.Use imported K type thermocouple: 0~1370ºC.
8.Temperature tester with multi channel temperature monitoring, measuring, recording function, and comparing with the test point temperature form rising temperature, self alarm when the rising temperature higher than setting temperature. Any point temperatures and temperature rising value can be checked, measurement error is ±1%.
9.Adopt anti interference technology combined with the hardware and software, function is stable and anti-interference is strong. Four basic screens, digital display picture, bar chart display picture, real time curve picture, recall curve picture.

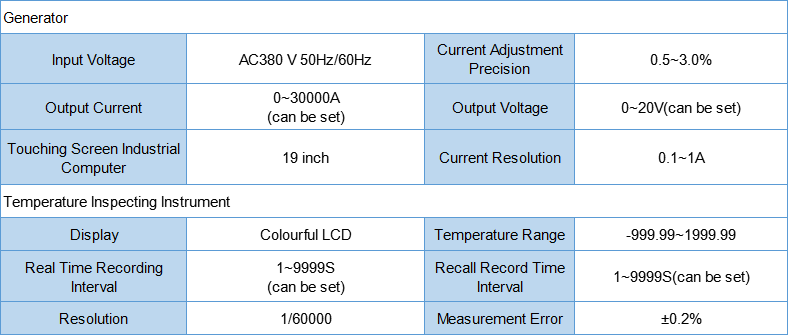

Ⅲ Specification

IV More Choice

HVTR-2500A Primary Current Injecter（3 Phase Manual Type）
