HVCT-1000P CT/PT Analyzer

Determines all relevant current transformer values and compare result within seconds with push of a button. IEC or IEEE. Fast and economical on-site testing and calibration. For Manufacturer of current,hv transformer and switchgear during dvpt and pro

Share:
Inquire Now

Product Description

HVCT-1000P CT/PT Analyzer



Ⅰ Introduction

HVCT-1000P Series CT Analyzer automatically determines all relevant current transformer values and compares the results with the selected standard. The device evaluates the current transformer as per the IEC or IEEE standard within seconds with the push of a button.
It facilitates fast and economical on-site testing and calibration of metering and protection current transformers. Manufacturers of current transformers, high voltage transformers and switchgear also use the CT Analyzer for tests during development and production.


 More information:

Project, News, Video,please kindly click the letters to view:

Product: HVCT-1000P CT/PT Analyzer

Toutorial Video Of HVCT 1000P CT PT Tester Test

Tutorial Video Of HVCT 1000P CT PT Tester Test-vertical


Ⅱ Features

1. Wide range of measurements:
(1) CT:
• CT ratio and phase-angle accuracy
• CT accuracy for different burdens
• CT winding resistance
• CT excitation characteristics
• CT inductance (saturated and unsaturated)
• ALF and FS (direct and indirect)
• Burden impedance
• CT residual magnetism
(2) PT:
• PT excitation and saturation
• Burden impedance
• Winding resistance Saturated and non-saturated inductance
• PT polarity
2. Easy to use. The CT PT Analyzer allows all types of single and multi-ratio current transformers to be tested, and it evaluates the current transformer within seconds with the push of a button;
3. Highest measurement accuracy: 0.05% / 2 min when calibrating on site;
4. Automatic evaluation according to IEC and IEEE standards;
5. Short commissioning times (duration of the automatic test<2min);
6. Excellent workplace safety - Tests run at max. 180V;
7. Very small and lightweight (<9kg/19.8lbs), easy to transport for on-site testing;
8. Professional pull box design, easy to carry, anti-vibration.


Ⅲ Function

The following values can be determined using the CT/PT Analyzer:
1. CT:
(1) Accuracy of the ratio and phase angle, taking into consideration the nominal burden and connected burden
(2) CT excitation and saturation
(3) Burden impedance
(4) Winding resistance Saturated and non-saturated inductance
(5) CT polarity
2. PT:
(1) PT excitation and saturation
(2) Burden impedance
(3) Winding resistance Saturated and non-saturated inductance
(4) PT polarity

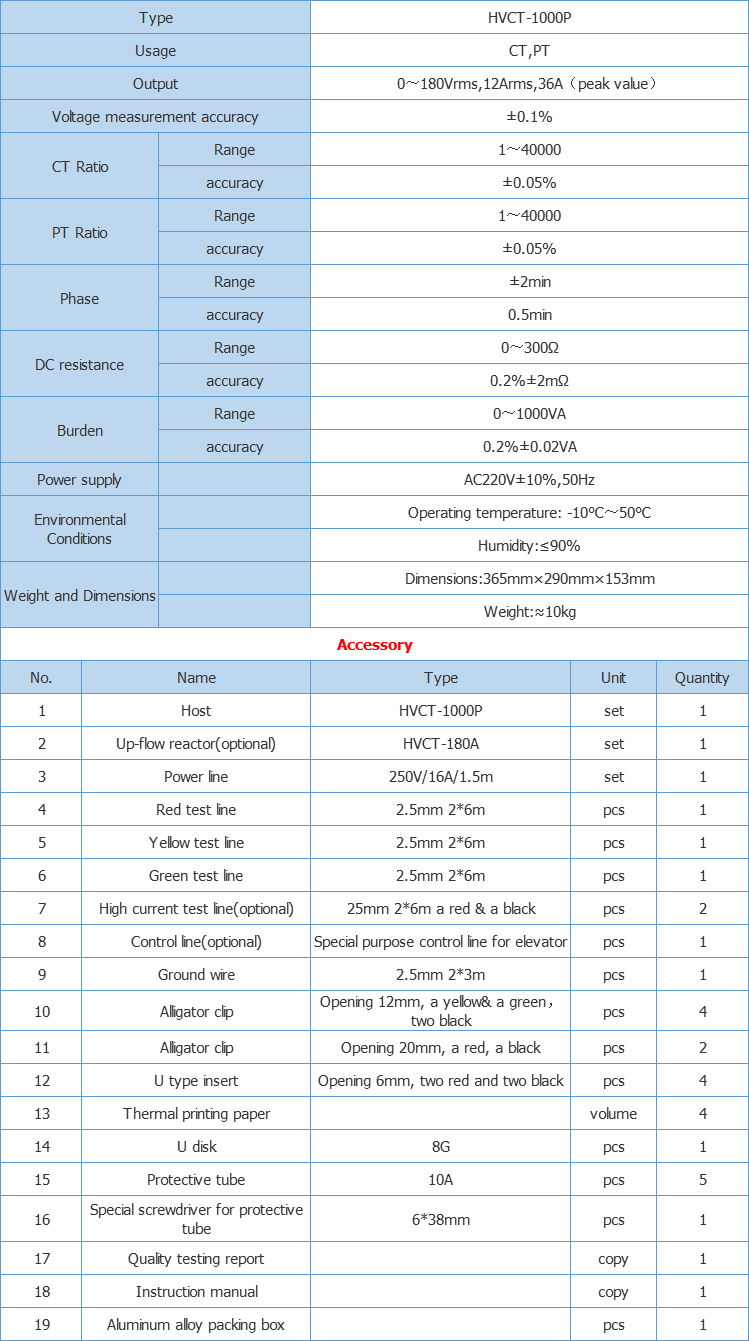

Ⅳ Parameters



FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
