HVJB-702 Secondary Injection Relay Test Set, Secondary Current Injection Test Set

Large LCD display and flexible rotating mouse controller. If coupled with computer to run the powerful operating functions. Small size, high accuracy. With superior performance, advanced features, easy operation and high reliability.

Share:
Inquire Now

Product Description

HVJB-702 Secondary Injection Relay Test Set,  Secondary Current Injection Test Set



Ⅰ Introduction

HVJB-702 comes with a large LCD display and flexible rotating mouse controller. If coupled with computer to run the powerful operating functions. Small size, high accuracy. With superior performance, advanced features, but also has a small tester compact and flexible, easy operation and high reliability.


 More information:

Prduct, Video, News, Project,please kindly click the letters to view:

Product: Relay Tester

Tutorial Video Of Relay Tester

News: Relay Tester

PROJECT: Relay Tester


Ⅱ Features

1.The tester with standard 4-phase voltage and 3 phase current output that can carry out combination of various types of output protection testing easily. Each phase voltage can output to 120V and 3 phases in parallel can up to 120A. The fourth phase voltage Ux is multifunctional voltage that can be set to four kinds of 3U0 or synchronous voltage or other certain voltage output.
2.Stand-alone operation, by rotating the mouse to operate through the large-screen LCD. Can test a variety of relays and microcomputer protectors and simulate complex transient, permanent, conversion of failures to test. Boot to use, easy to operate
3.Dual operating mode, connect computer to run, through Windows operating software can complete large and complex calibration task with highly automatization, can easy to test and scan various of protection values, real-time storage test data, display vector graph, draw fault waveform, online print reports, etc.
4.Powerful software: can complete large and complex calibration task with highly automatization.
5.Many of switch contacts: relay tester is 8 contacts inputted and four pairs of idle contacts outputted. The input contact is idle contacts compatible with 0 ~ 250V potential contacts, that can be intelligent automatic identified. The contacts of input and output can be extended according to user requirement.
6.Large-screen LCD display: adopts 320 × 240 dot matrix large-screen high-resolution graphics LCD, all the operation process are set on the display screen, display clear and intuitive.
7.Self-protection: adopts reasonable radiator structure design, with a variety of reliable and comprehensive protective measures and power soft start, and certain self-diagnostic and interlock function.
8.With separate dedicated DC power output: dedicated adjustable 110V and 220V DC power output
9.Cost-effective: it’s belonging to the cross-disciplinary joint-design product, which integrated multi-disciplinary advanced scientific and technological achievements. With high performance price ratio.

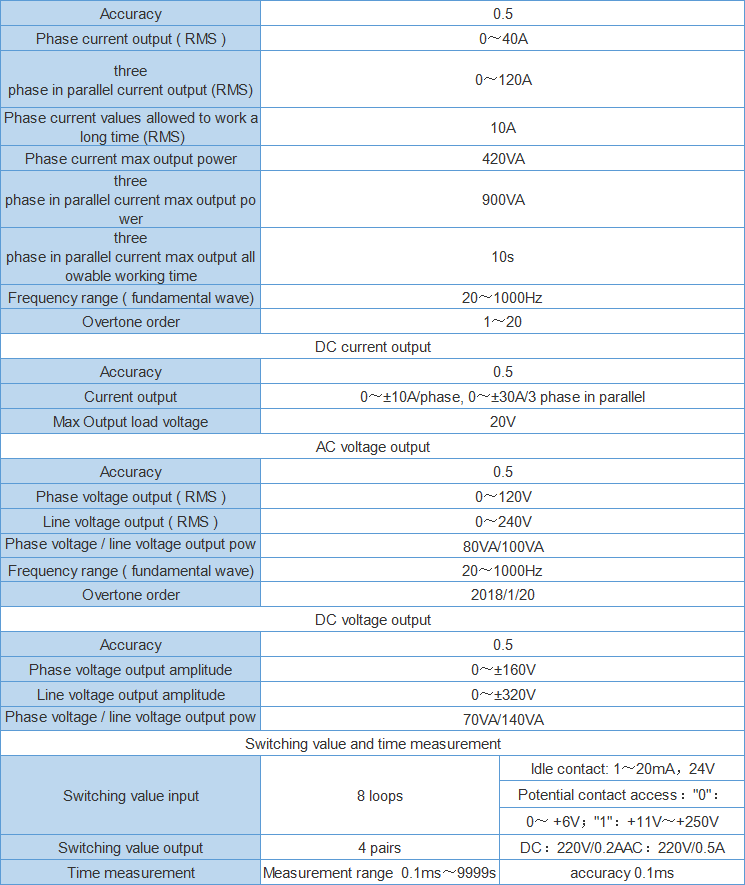

Ⅲ Parameters



FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
