HVBR-V Transformer Capacity Load & No-load Loss Tester

Ⅰ Introduction

HVBR-V can test the transformer capacity, type, no-load current, no-load loss, short circuit (load) loss, resistance voltage, etc. It is small in volume, light in weight, in high accuracy, with steady property, easy to operation can replace the traditional testers. It is displayed by LCD, operated by menu, with friendly interface, is the first choice for all customers.

Ⅱ Features

1.Can accurately measure capacity of distribution transformer , convenient and accurate.

2.Measure the transformer no-load current, no-load loss; short-circuit voltage, short circuit (load) loss, capacity.

3.The device with auto switching range, allow measure wide range voltage and current, simple wiring;

4.The device can auto check if the wire was correctly connected, and display the vector diagram of three phase current, voltage when test the three phase transformer.

5.Single machine can make the loading test for substation transformer under 1000KVA; can make the loading test with 1/3 of the rated current for substation transformer under 3150KVA (the device can convert to the loading losses parameters if the rated current under 1/3 of the rated current)

6.All the related test results are automatically corrected. Instrument can automatically such as: the waveform correction, temperature correction, non-rated voltage correction, calibration, and other non-rated current correction, so that more accurate test results.

7.320x240 LCD, friendly man-machine interface, brilliance control, adapts to all seasons.

8.The device can be preset 40 groups parameters of testes objects, and these parameters can be deleted or added at any time as needed, easy to use.

9.With electronic clock, auto record the data, time, it is good for saving and managing the test results.

10.Panel type printer can print the test results on site.

11.Data (specimen setting, test results, measurement time) can be saved on power failure and can be reviewed, it can store 500 groups test results, can connect with computers to transmit data.

12.Allow external connecting CT and PT to make extension measurement, can test the specimen with any parameters.

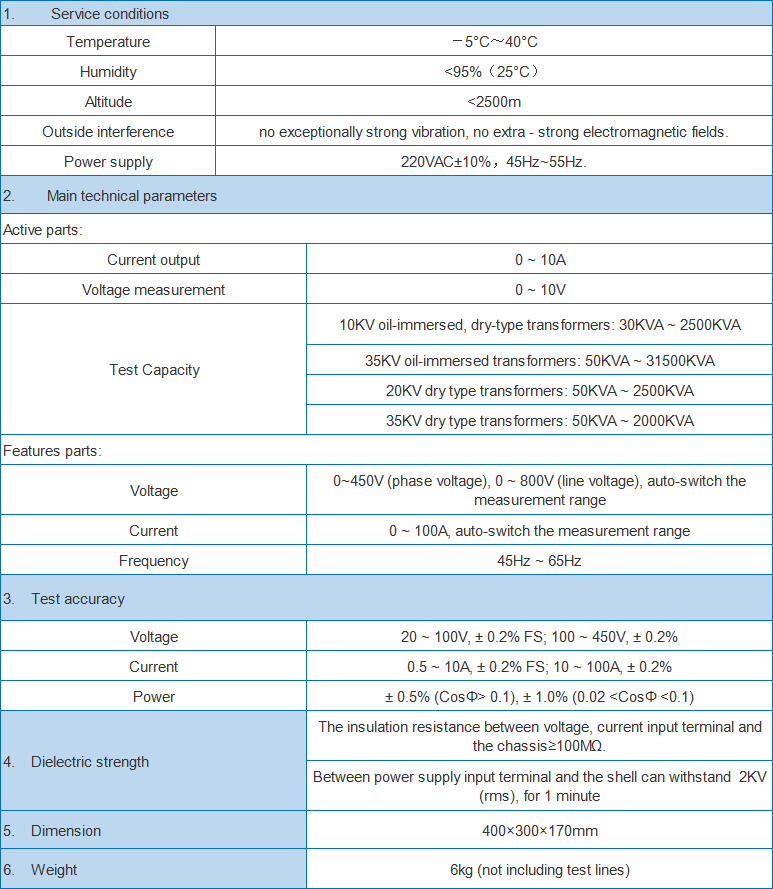

Ⅲ Parameters

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
