HVB-III Transformer Ratio Tester(TTRM,Transformer turn ratio meter)

Ⅰ Introduction

HVB-III Transformer Ratio Tester is specially designed for three-phase transformer in power system, especially for transformer of type Z winding and other transformers whose zero-load current is relatively high. The tester has wide testing range, fast testing speed, favorable repeatability, flexible data processing, convenient connection, complete protection, easy learning and convenient operation.

 More information:

Prduct, Video, News, Project，please kindly click the letters to view:

Product: TRANSFORMER TURN RATIO TESTER METER(TTR METER)

Tutorial Video Of TRANSFORMER TURN RATIO TESTER METER(TTR METER)

News: TRANSFORMER TURN RATIO TESTER METER(TTR METER)

PROJECT: TRANSFORMER TURN RATIO TESTER METER(TTR METER)

Ⅱ Features

1.Applicable to transformers connected in Z type.

2.Two output voltages are optional and applicable to transformer whose zero-load current is relatively high.

3.Have wide testing range and the highest transformation ratio may reach 10000.

4.Automatically calculate tap position.

5.Fast speed, which is only 18 seconds for three-phase.

6.Favorable repeatability.

7.Automatically save 99 data at most.

8.Flexible data processing, including retrieval, print, transfer to U-disk, delete and upload to PC computer for testing.

9.Have transformer short-circuit protection and interturn short-circuit protection functions. In case of short circuit, relevant information will be displayed on the LCD screen in characters.

10.The upper computer could control the whole testing process, save data.

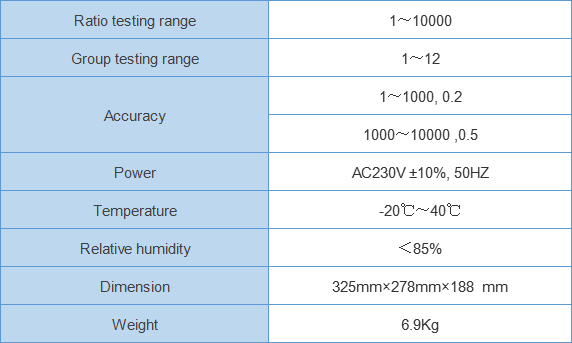

Ⅲ Parameters
