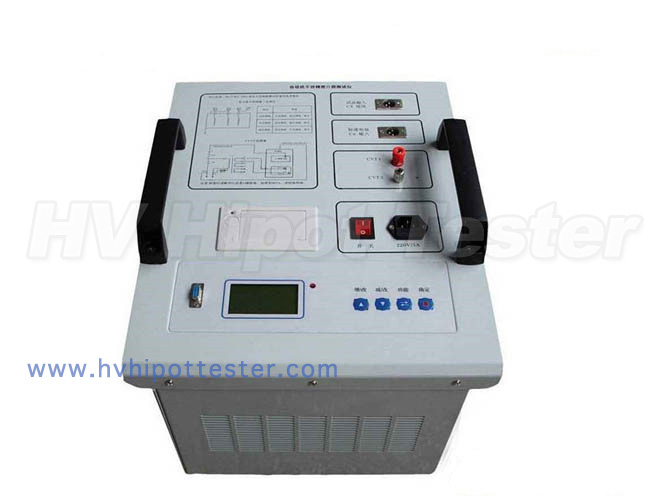

HV9000 Capacitance & Tan-Delta Tester

Ⅰ Introduction

Dielectric Loss Measurement is very basic insulation testing method which can effectively found the deterioration damp deterioration of electrical equipment insulation, as well as local defects. In electrical manufacturing, electrical equipment installation, transfer and preventive tests are widely used. Measuring dielectric loss of transformers, CT/PT, reactors, capacitors, and bushings, surge arresters and other is the most basic measure of its insulating properties. HV9000 tan delta tester breaks the traditional bridge measurement method, using variable frequency power supply technology, using SCM, and modern electronic technology for automatic frequency conversion, analog / digital conversion and data operations. With strong anti-jamming capability, fast test speed, high precision, automatic digitization, easy to operate; use switching power supply, 45Hz and 55Hz pure sine wave output, automatic apply voltage, providing a voltage up to 10 kV; automatically filter 50Hz interference, suit for substation and other strong electromagnetic interference field testing.

Application:

Widely used in dielectric loss measurement of power transformer, CT/PT, mutual inductor, reactor, bushing, capacitor, insulating oil, surge arrester and others equipment in power industry.

 More information:

Project, News, Video，please kindly click the letters to view:

Product: TAN-DELTA TESTER

Tutorial Video Of TRANSFORMER TEST DEVICE

Ⅱ Features

1.The tester adopts complex current method, which measuring capacitance, dielectric loss, and other parameters. High accuracy of test results, easy to realize automated measurement.

2.The tester adopts frequency technology to eliminate the scene 50Hz frequency interference, even under the condition of strong electromagnetic interference, can get reliable data.

3.Adopts large-screen LCD display, easy to operate.

4.Measurement process is controlled by a microprocessor, as long as to choose correct measurement method, measurement data can be automatically finished under microprocessor control.

5.Integrated design, built-in standard capacitor and HV power supply, convenient for field test, reduce field wiring.

6.High accuracy. Equipped with standard oil cups and dedicated test lines can realize oil dielectric loss measurement.

7.Set CVT test function, can achieve CVT self-excited method test, without external attachments, only need to test one time, capacitance and dielectric loss of C1, C2 can all be measured.

8.Reverse wiring test uses ivddv technology, eliminating the previous reverse wiring data instability phenomenon.

9.With reverse wiring LV shielding function, under the condition of 220 kV CVT busbar grounding, can measure reverse wiring dielectric loss for C11 without dismantling wire 10KV.

10.With measuring HV dielectric loss function, can use HV transformer or series resonance to carry out exceed 10kV voltage dielectric loss test.

11.With ground protection and over-current protection functions.

12.With electric shock protection function, when the operator accidentally get an electric shock, the instrument will immediately cut off high voltage to ensure the safety of personnel.

Ⅲ Parameters

1. High voltage output: 0.5~10kV

                  Increasing by 500V for each level, a total of 20 levels, capacity: 1500VA

2. Accuracy: tgδ: ± (reading *1.5% +0.06%)

                  Cx: ± (reading * 1.5% +5 PF)

3. Resolution: tgδ: 0.001%   Cx: 0.001pF

4. Measuring range: 0.001% <tgδ <100%

                   Internal high pressure : 3PF ～60000PF/10KV    60PF～1µF/0.5KV

                   External high pressure: 3PF ～1.5µF/10KV       60PF～30µF/0.5KV

5. CVT Variable ratio test: Variation ratio measurement accuracy: ± reading *1%

                   The range of the measurement: 10～99999

                   Phase measurement accuracy: ±0.1°

                   Phase measurement range: 0～359.9°

6. Power supply: AC 220V ± 10%   50/60 ± 1Hz

7. Measuring method: a.single frequency: 45(45Hz measuring)、50(50Hz measuring)、55(55Hz measuring)、60(60Hz measuring)、65(65Hz measuring)

                    b.different frequency: 50D(45Hz/55Hz measure each time)

                    60D(55Hz/65Hz measure each time)  Automatic frequency conversion

8. Harmonic adaptation: ≤ 3%

9. Application condition: -15 ℃－50 ℃ Relative humidity <80%

10. Dimension: 460 (L) × 345 (W) × 345 (H)

11. Weight: 35 kg

IV. Reference connection method:

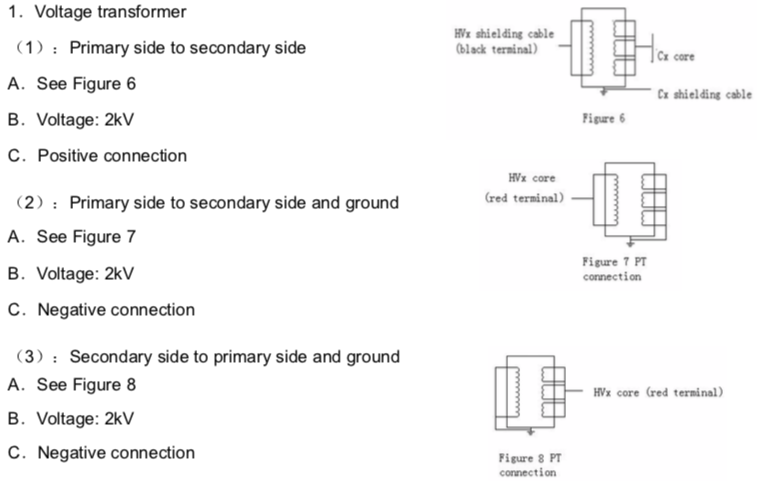

1．Voltage transformer

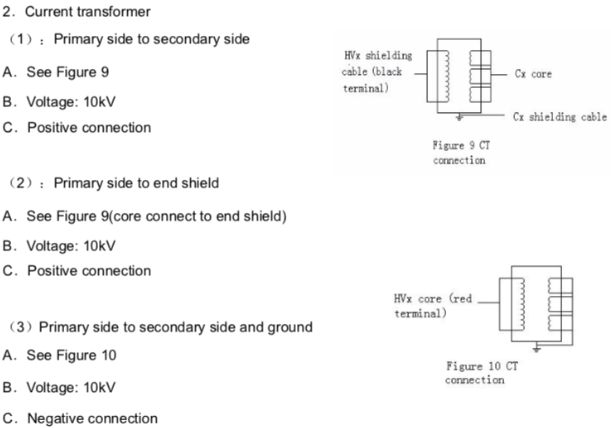

2.Current transformer

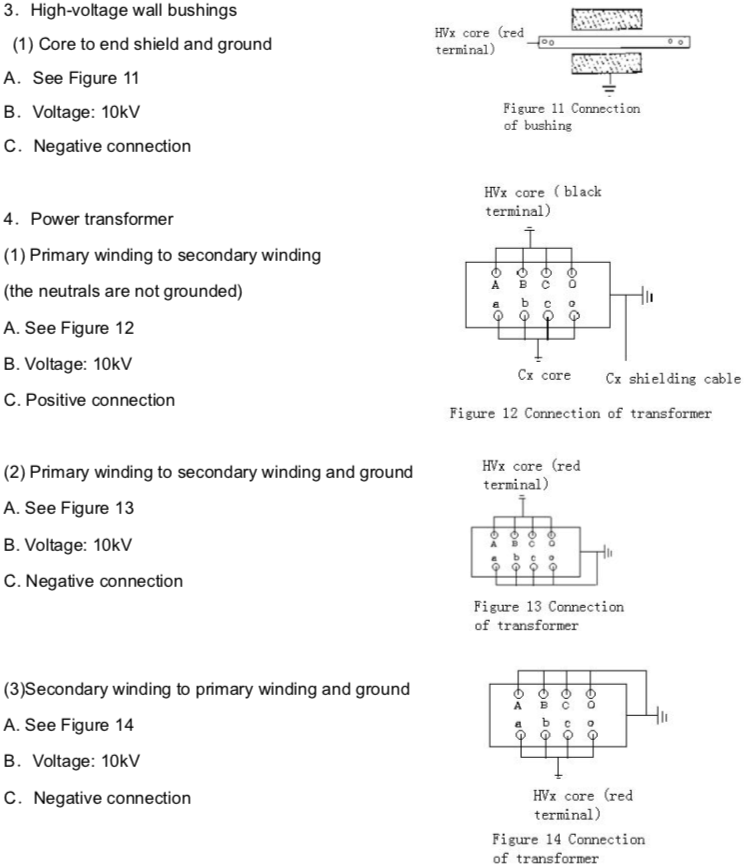

3.High-voltage wall bushings

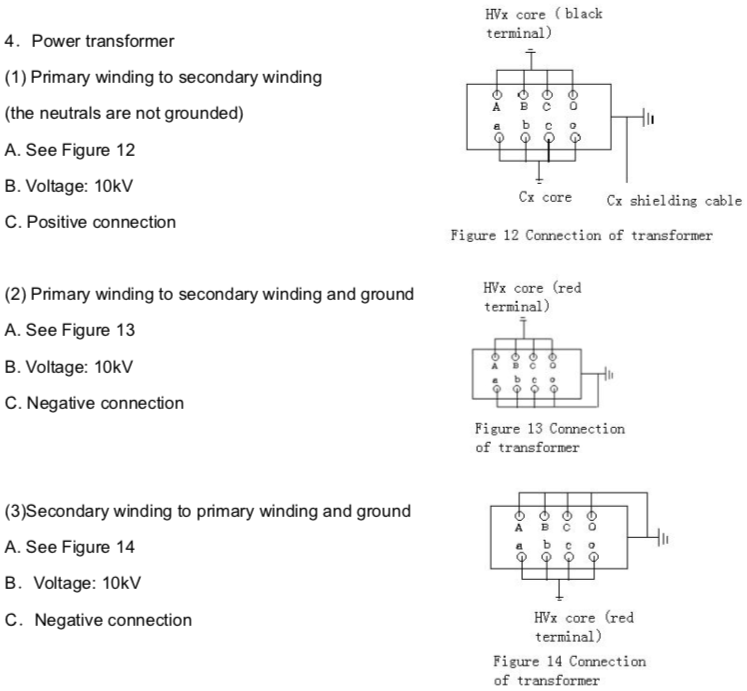

4.Power transformer

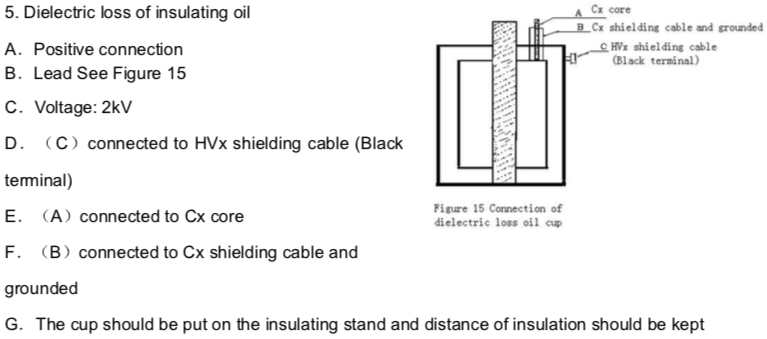

5. Dielectric loss of insulating oil

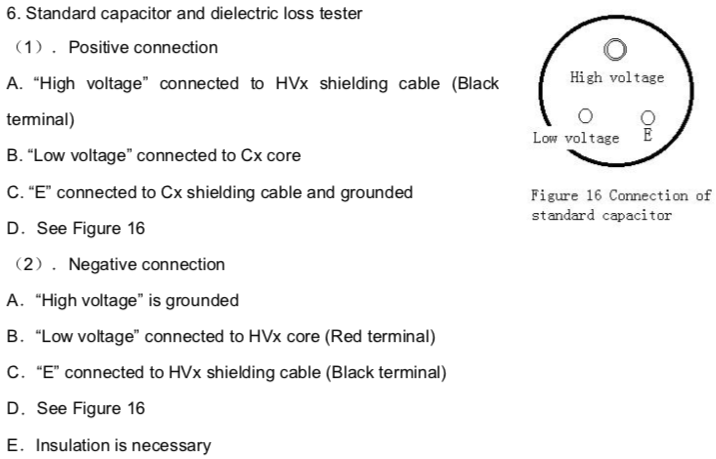

6. Standard capacitor and dielectric loss tester
