The HVSF-Mini Portable SF6 Gas Recovery Device is utilized in manufacturing, operation, and scientific research of SF6 gas-insulated electrical equipment to fill, recover, purify, compress, and store SF6 gas, suitable for networks below 50kV.

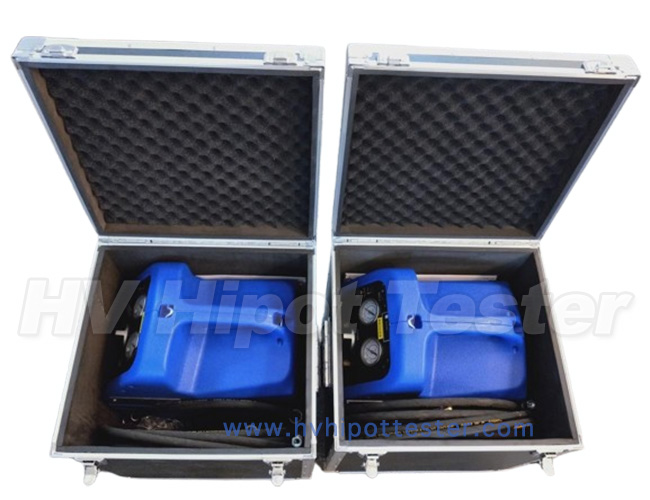

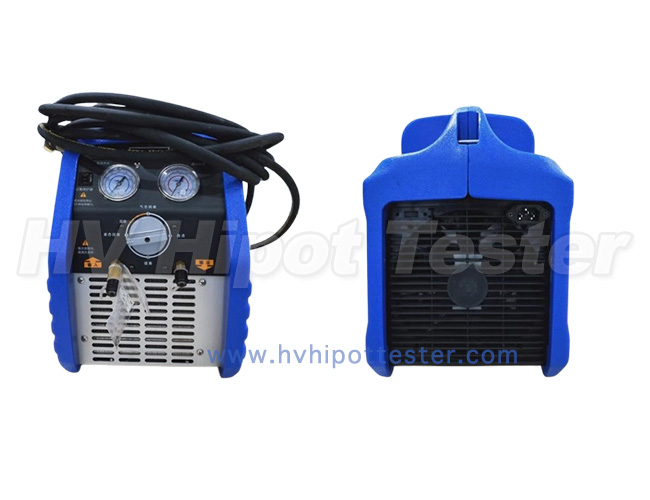

HVSF-Mini Portable SF6 Gas Recovery Device
HVSF-Mini Portable SF6 Gas Recovery Device is used in the manufacturing plant of SF6 gas insulated electrical equipment and operation & scientific research departments to fill electrical equipment with SF6 gas and recover SF6 gas from electrical appliances used or tested.
At the same time, it is purified and compressed and stored in the storage tank. Suitable for ring network distribution network below 50kV.
More information:
Project, News, Video，please kindly click the letters to view:
Product: SF6 TESTING EQUIPMENT
Toutorial Video Of HVSF-III-H2S, SO2 3 in 1 SF6 Analyzer-Purity & Dew Point & Decomposition
News: HVSF-III-H2S, SO2 3 in 1 SF6 Comprehensive Analyzer DELIVERED to Southeastern Asian Customer
PROJECT: HVSF-III-H2S, SO2 3 in 1 SF6 Analyzer-Purity & Dew Point & Decomposition
Recover the gas in electrical equipment.
Drying the recovered and refilled SF6 gas.
Compress storage and bottle filling of SF6 gas in electrical appliances.
Directly press SF6 into a small gas cylinder (provided by yourself) for storage.
Model | HVSF-Mini | Compressor exhaust volume | 2.8m3/h Compressor CDS181 | ||
Compressor Origin | Italian original | Maximum exhaust pressure | 5.5MPa | ||
Maximum Suction Pressure | 0.4MPa | Allowable exhaust pressure | 3.8MPa | ||
Cooling Method | Air Cooling | ||||
Recovery | Final pressure ≤53Kpa, gas recovery rate 20-30 kg/hour, liquid recovery 70-80 kg/hour | ||||
Storage | Liquid, can be directly pressed into cylinders for storage, the whole machine weight is less than 25 kg (excluding cylinders) | ||||
Noise | 60DB | Size | L 500*H 400*W 300（Estimated, subject to actual delivery） | ||
Power | 1KW | Power | 220V | ||
Name | Technical parameters or description | QTY |
Compressor (built-in) | Imported from Italy, maximum pressure 3.5MPa, displacement 2.8m3/h | 1 |
Interface pipeline for inflatable cabinet | Can be customized according to customer needs | 1 |
Interface pipeline for gas bottle | Standard configuration | 1 |
Aluminum alloy outer box | Portable outer box | 1 |
A spare gas tank
Self-sealing valves that can be connected to electrical equipment
Left interface connects electrical equipment
Right interface connects electrical equipment Connect power supply AC220
Turn on the power switch
Gaseous recovery is generally used.

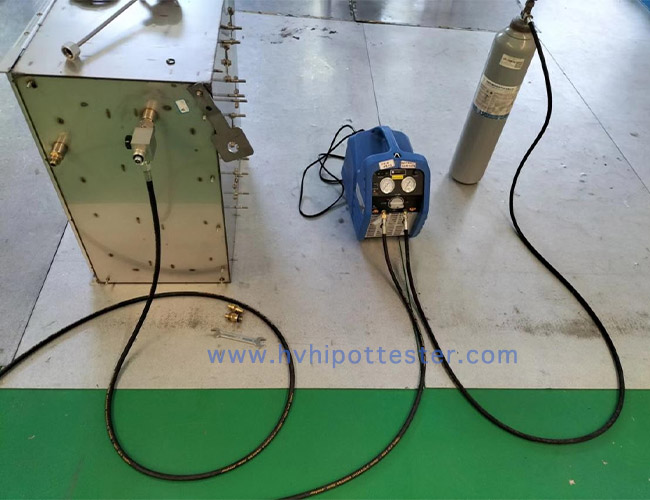

As shown in the figure above, SF6 gas is directly liquefied and recovered into an empty cylinder container.
