HVLBT Series Battery Tester

HVLBT Series Battery Testers are widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. They can also be used to measure AC resistance of capacitors and resistors with low resistance and high

Share:
Inquire Now

Product Description

HVLBT Series Battery Tester



Ⅰ Introduction

HVLBT Series Battery Testers are widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. They can also be used to measure AC resistance of capacitors and resistors with low resistance and high precision.


 More information:

Prduct, Video, News, Project,please kindly click the letters to view:

Product: Battery Tester

Tutorial Video Of Battery Tester

News: Battery Tester

PROJECT: Battery Tester


Ⅱ Series Features


Product

Brief Description

Main Parameter

Product Picture

Application

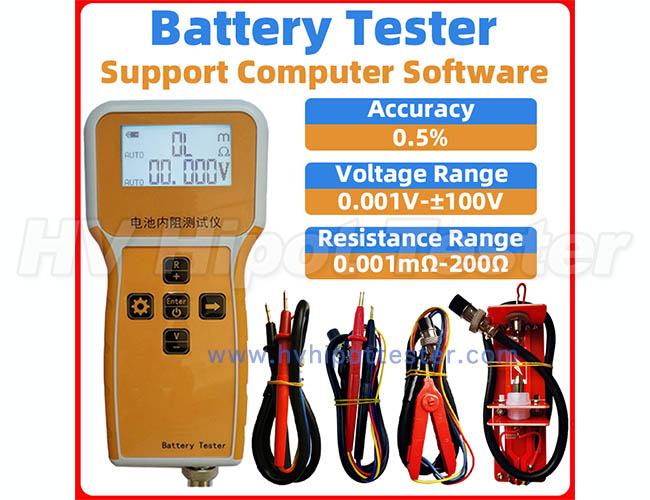

HVLBT 563 High-end Probe High-precision Internal Resistance Detector True Four-wire AC Lithium Lead Acid Lithium Car Battery Tester

liquid crystal display, direct reading
Kelvin four-wire test clamp,

1.Accuracy:AC resistance, DC voltage, R:0.5%, V:0.5%
2.Measurement Range,
Signal SourceRange:  R:0.01mQ ~200MV:0.001V~t75VDCV
                                 AC:1kHz At 20m@ range:50mA At 200mQ/ 2Qrange
5mA At 20Q/200Q range: 0.5mA
R:Automatic and Manual.5ranges
V: Automatic and Manual,3 ranges

3.Power Supply: Built-in 1000mAh lithium battery,
Be suitable to use 5V 1A Android mobile phone charger

4.The Meter with different connector, With different connector with different price.
   1, Ordinary Probe
   2, High-end Probe
   3, Fixture

5.Size: 166mm (Length)~80mm(Width)28mm(Height) 173.5g


This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other
occasions.It can also be used to measure AC resistance of capacitors and resistors with low resistance and high precision.

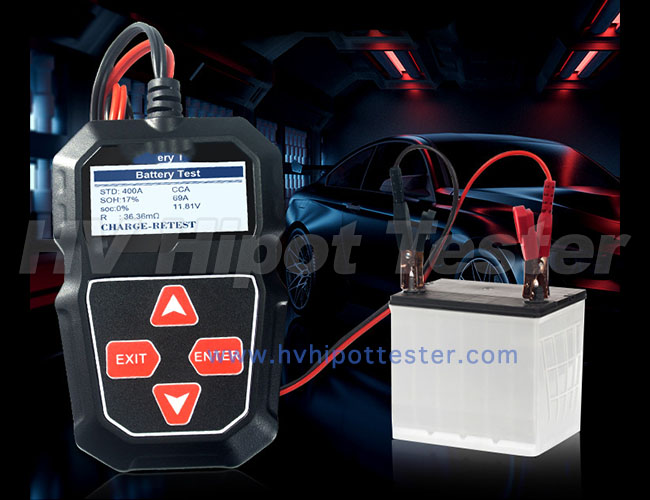

HVLBT 208 12V Electric Diagnostic Tool Car Battery Tester

Industry initiative graphical Battery Voltage real-time monitoring
Unique battery results display in percentage

1.The wide testing range cover from CCA 100- 2000, 30- 220 AH, best in the market
2.Polarity reverses connection protection, reverse connection will not damage the tester or affect the vehicle and battery.
3.Directly test the battery with loss of electricity, no need to full charge before testing.
4.Item size( cm):12.7*7.8*2.0

1647495858420297.pngTest all automotive cranking lead acid battery, including ordinary lead-acid battery, AGM flat plate battery, AGM spiral battery,
and Gel battery, etc.



FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
