HVOWTS PD Diagnosis on Cables With Oscillating Wave Test System(OWTS)

Ⅰ、Introduction

The HVOWTS series products have a compact structure, the system integrates a DC high-voltage output, no corona reactance, and a partial discharge synchronous measurement unit, which is compact and easy to transport. In particular, low- and medium-voltage oscillating wave equipment can be easily tested and tested in cramped spaces such as basements and switch cabinets.

The HVOWTS series is powerful, with a maximum output voltage ranging from 30 kV to 600 kV. It can provide a variety of evaluation methods for cables, such as withstand voltage testing, fault location, partial discharge diagnosis and dielectric loss detection; for power workers to manage cable assets— A comprehensive and reliable basis for decision-making.

The latest equipment software is more convenient and quick, and only one calibration is needed to complete the acquisition of all discharge parameters. The high-voltage detection process can be set according to user habits or industry standards—secondary pressure setting, without human intervention to complete the analysis while applying voltage.

 More information:

1.Related Technology，please kindly click the letters to view:

 Tech: Oscillating Wave Test System Locates Partial Discharge Faults

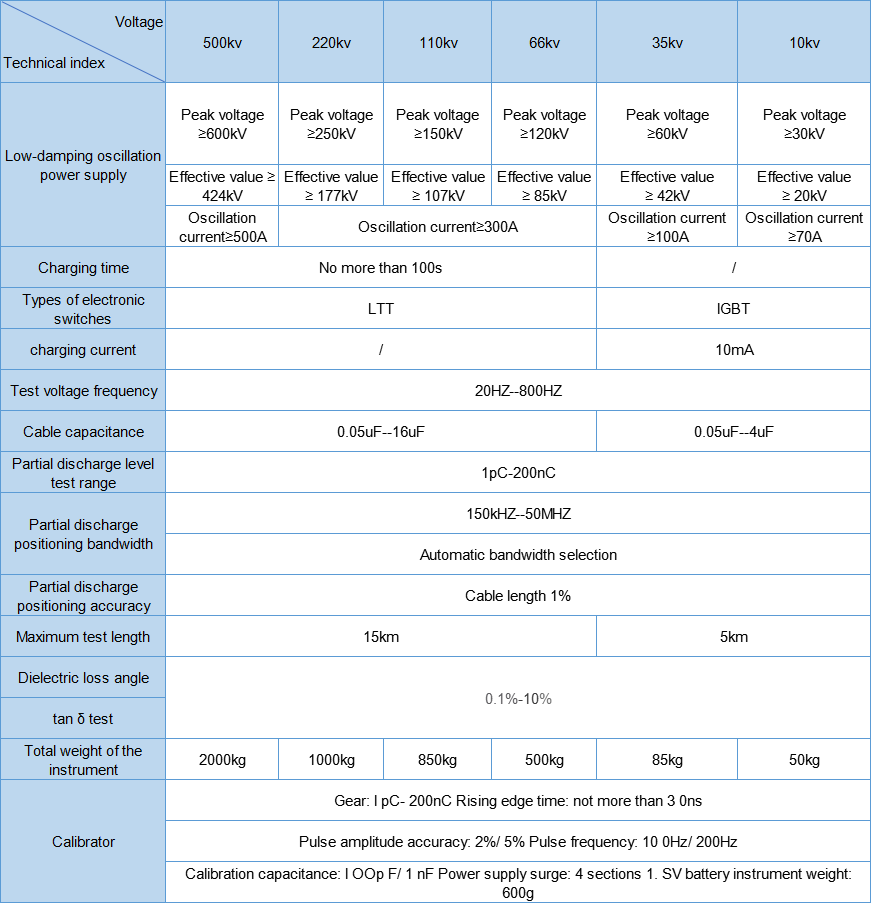

Ⅱ、System parameters

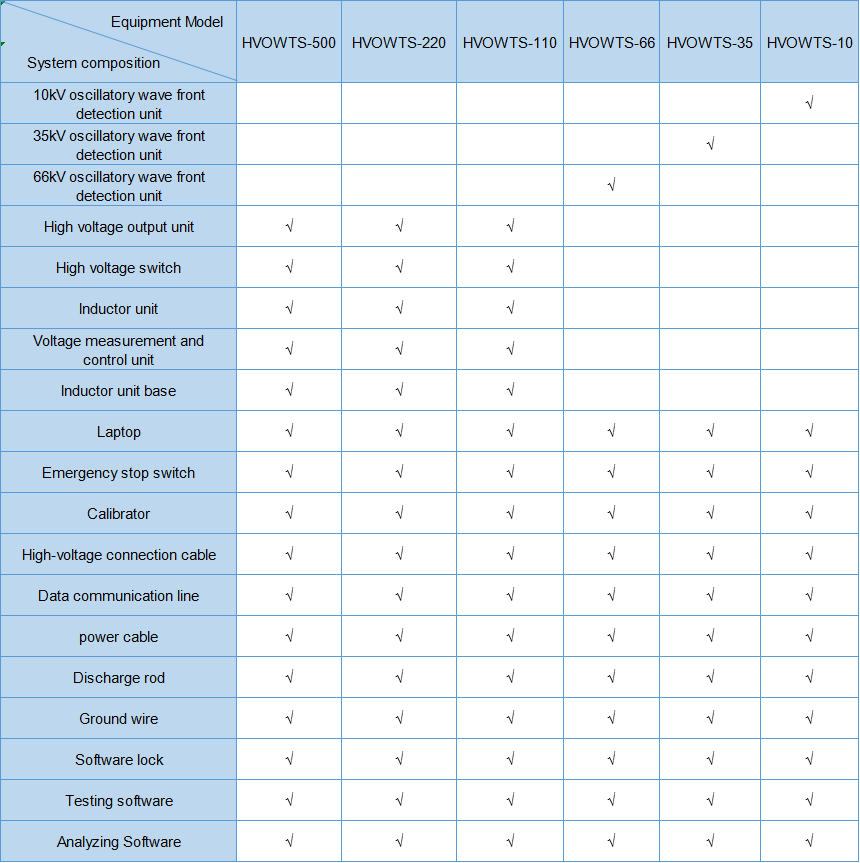

Ⅲ、System configuration list

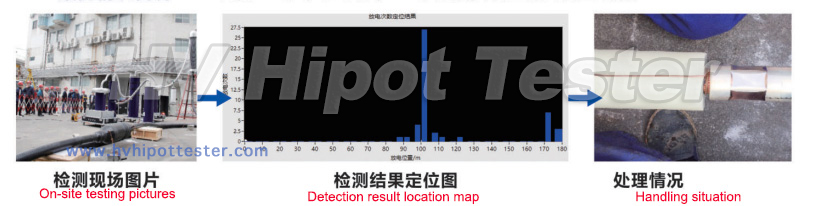

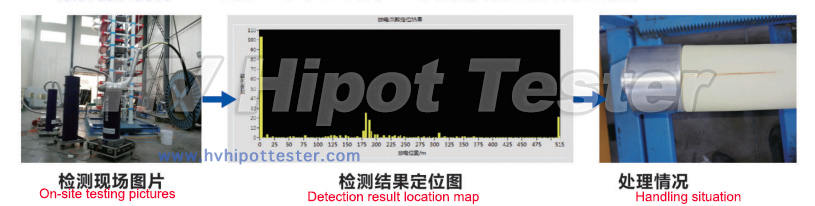

IV. Site Pictures:

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
