HVCI-55D Cable Identifier

Ⅰ. Overview

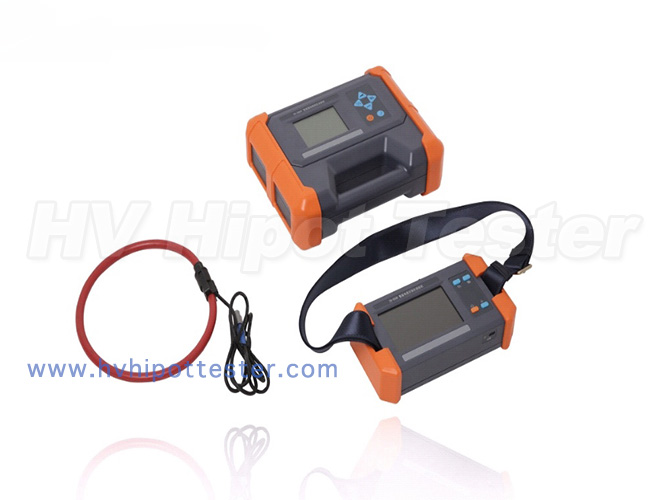

The intelligent cable identifier is a set of high-performance cable identifiers. It consists of a signal transmitter and a receiver. It is used to accurately identify the target cable among multiple cables. It is also suitable for live and uncharged cables. Live cables are only suitable for three-core tapes. Armor cable. The recognition accuracy is high and it is easy to use.

 More information:

Project, News, Video，please kindly click the letters to view:

Product:  HVCI-55D Cable Identifier

Tutorial Video of HVCI 55D Cable Identifier

PROJECT: HVCI-55D Cable Identifier

Ⅱ. Features

      ●  Suitable for live and uncharged cables, live cables are only suitable for three-core armored cables.

     ●  Flexible calipers are flexible and convenient to receive and use.

     ●  50Hz/60Hz cable load current measurement function.

     ●  A variety of signal output methods: direct connection output, caliper coupling.

     ●  High-power output of the transmitter, multi-output adjustable, automatic impedance matching, and full automatic protection.

     ●  Unique identification: clearly give the identification result.

     ●  Built-in large-capacity lithium-ion battery pack, automatic shutdown under voltage, automatic shutdown after no operation for a long time.

     ●  The casing is sturdy, lightweight and portable.

     ●  Fully digital high-precision sampling and processing, the receiving passband is extremely narrow, and the anti-interference ability is strong, which can fully suppress the power frequency and harmonic interference of adjacent running cables and pipelines.

Ⅲ. Technical indicators

Transmitter:

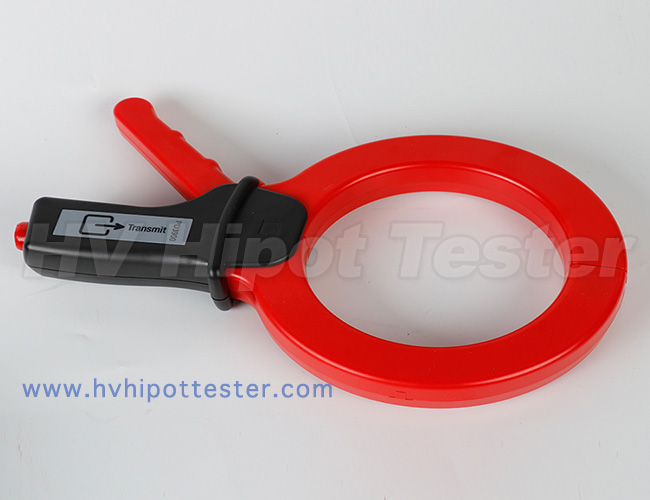

1. Output mode: direct connection output, caliper coupling.

2. Output frequency: 640Hz (composite frequency), 1280Hz (composite frequency).

3. Output power: maximum 10W, 10 levels adjustable, fully automatic real-time impedance matching.

4. Directly connected output voltage: up to 150Vpp.

5. Overload and short circuit protection.

6. Man-machine interface: 320×240 dot matrix liquid crystal display.

7. Built-in battery: 4 18650 lithium ion batteries, nominal 7.4V, 6.8Ah.

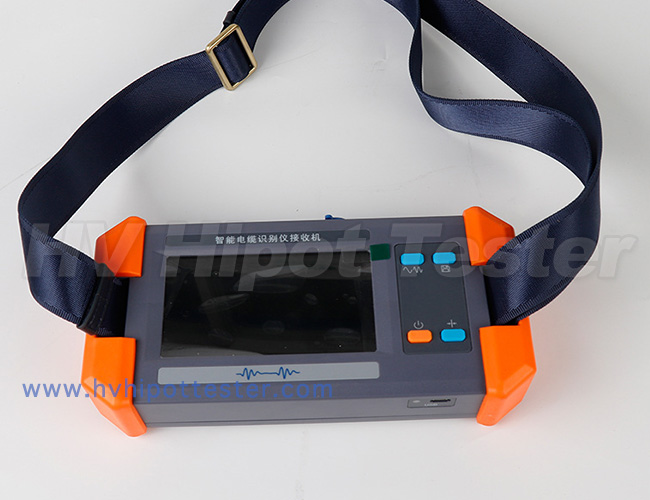

Receiver:

1. Input method: flexible calipers.

2. Receiving frequency:

Active detection frequency: 640Hz, 1280Hz.

Power frequency passive detection frequency: 50Hz/60Hz (user configurable).

3. Cable identification: Intelligent identification of flexible calipers.

4. Power frequency measurement: range AC 1-1000A, accuracy ±3%.

5. Man-machine interface: 800x480 LCD display; LCD size 121x76mm.

6. Built-in battery: 2 18650 lithium ion batteries, nominal 3.7V, 6.8Ah.

Others:

1. Volume: transmitter 280×220×90mm, receiver 220×125×55mm.

2. Quality: transmitter 2.3kg, receiver 0.9kg.

3. Transmitter charger: input AC100-240V, 50/60Hz, output DC8.4V/2A.

4. Receiver charger: input AC100-240V, 50/60Hz; output DC5V/2A.

5. Operating conditions: temperature: -10℃-40℃, humidity 5-90%RH, altitude <4500m.
