The Difference Between The Impulse Current Generator And The Impulse Voltage Generator
The impulse current generator is mainly suitable for carrying out various surge current tests on lightning surge protection products such as lightning arrester resistors, varistors, discharge tubes, etc., and measuring its voltage and current parameters under the surge current. It can also be matched to the action load test of the test article. A variety of waveform combinations can produce 8 / 20μs and other current waveforms on one device according to customer requirements.
The impulse current generator is mainly used to test the ability of electrical equipment to withstand the stability of the impact current. It is widely used in the zinc oxide surge arrester valve for the impact current test, and can also be used for other research tests.

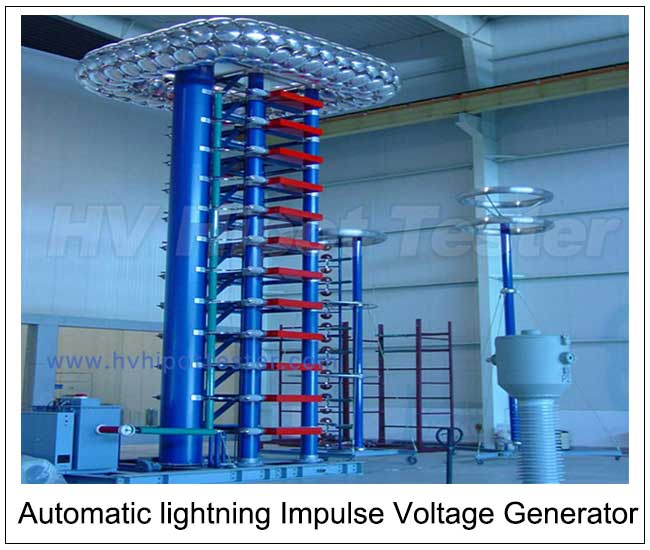

The impulse voltage generator is used for high voltage equipment that generates lightning impulse or operation impulse. The impulse voltage generator is mainly used for electrical equipment and other test products to carry out the impulse voltage test of the full-wave of the lightning impulse voltage, the interception of the lightning impulse voltage and the operating impulse voltage wave, and to check the insulation performance. The impulse voltage generator uses multi-stage capacitors to charge in parallel and discharge in series to generate the required voltage. Its waveform can be adjusted by changing the resistance of Rf and Rt, the amplitude is adjusted by the charging voltage V, and the polarity can be changed by switching the silicon stack D Two poles to change.
