HV-860、860B Leakage Protector Tester

Designed to test the line AC voltage, leakage initiating current, residual non-operating current and leakage initiating separation time of various leakage protectors online

Share:
Inquire Now

Product Description

HV-860、860B Leakage Protector Tester



Ⅰ Introduction

HV-860、860B Leakage Protector Tester is designed to test the line AC voltage, leakage initiating current, residual non-operating current and leakage initiating separation time of various leakage protectors online, the test current from 5~1000mA with 16 grade (5、10、15、20、30、40、50、60、100、150、200、250、300、500、600、1000mA), range of the leakage initiating separation time is 0~999ms, adopts 854X480 colorful touch LCD display, with battery power display, setting fault voltage indication, backlight brightness adjustment, internal wiring guidance diagram, convenient and direct-viewing, easy to operate. With high precision, small size, light weight, delicate appearance and easy to carry, the meter is an ideal tool for on-site or indoor detection of various leakage protectors.

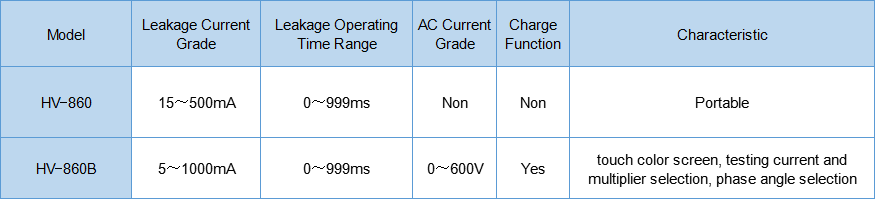

Model Comparison

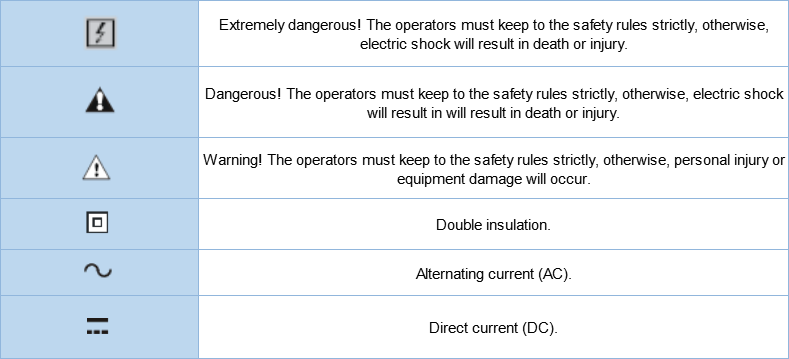

Ⅱ Electrical Symbol

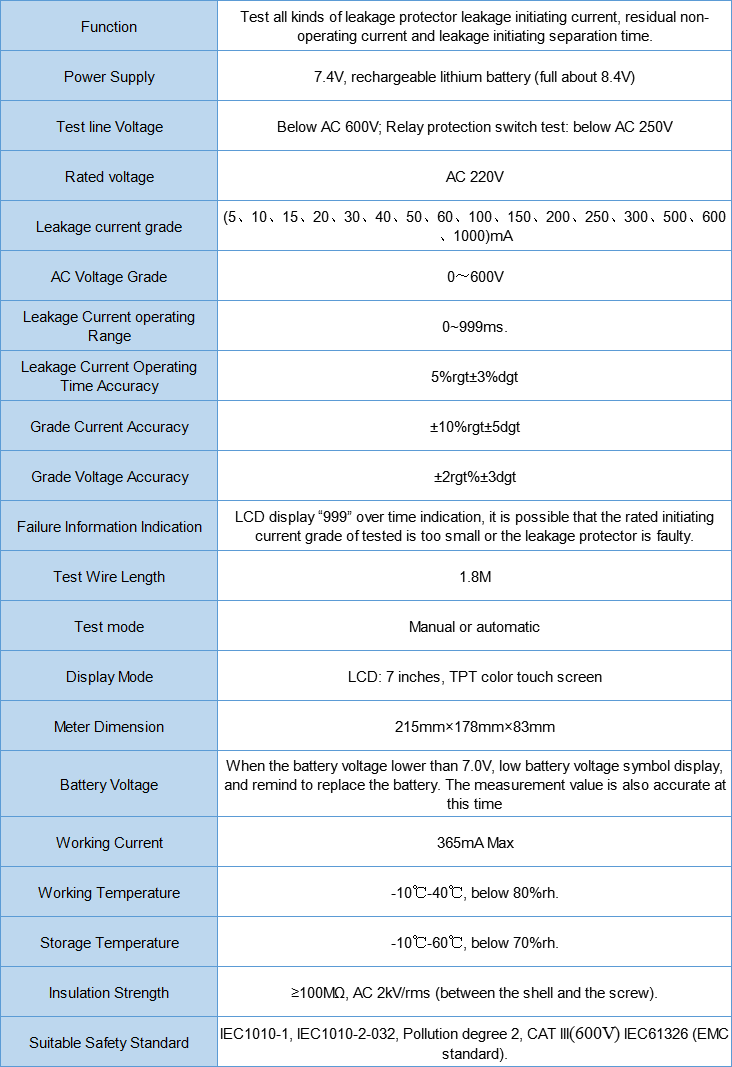

Ⅲ Technical Specification






 Instrument Structure




1  L interface (connect live wire)

2  N interface (connect ground wire)

3. LCD

4  Panel buttons

5  Charge Interface

6  Function rotary switch

7  Alligator clip test wire

8. Probe test wire

9. Socket test wire


FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
