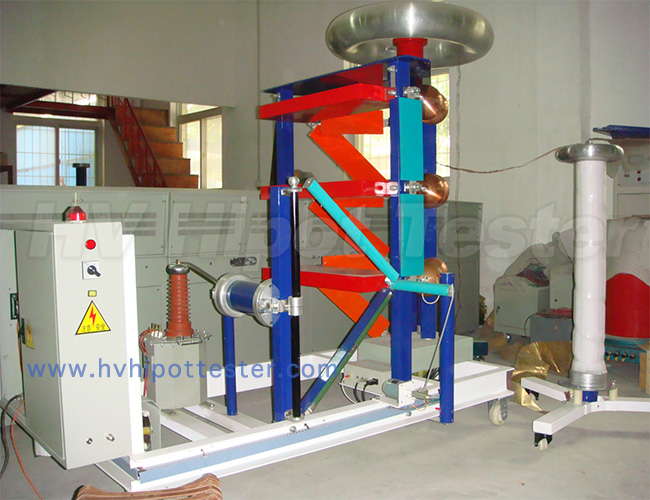

HVIG-400kV/20kJ Automatic lightning Impulse Voltage Generator Testing System device

Ⅰ Introduction

Mainly suitable for 3.6kV~24kV and the following electric power  equipment product lightning surge voltage full wave experiment, may also use in other products the impact test and research.

More information:

Project, News, Video，please kindly click the letters to view:

Product: HV Lightning Impulse Voltage Generator, Impulse Current Generator

Factory Video of HVIG Automatic lightning impulse voltage generator testing system

Difference of Impulse current generator VS Impulse voltage generator, please click on the picture or title to view more:

HVCG Impulse current generator is for withstand impulse current test of electrical equipment such as SPD (Surge Protector), Arrester resistance sheet, Zinc oxide arrester valve plate, varistor, discharge tube.

HVIG Impulse Voltage Generator is for Withstand short-time impulse voltage test of tranformer, swithgear, insulator, cable, etc.

Ⅱ Test Functions And Projects:

The plant load capacity: test for the maximum to 5nF capacitive insulators and products, obtain the following lightning impulse test waveforms:

1.Standard lightning impulse voltage full-wave:±1.2/50μs; the efficiency is bigger than 90%.

2.To use interrupts the equipment to be possible to have the interruption time 2~6μs standard lightning surge truncation wave voltage profile, the truncation wavelength division divergence is smaller than 100ns.

3.Transformer Reactor lightning impulse voltage test shows dedicated Current full waveform shown injury current waveform;

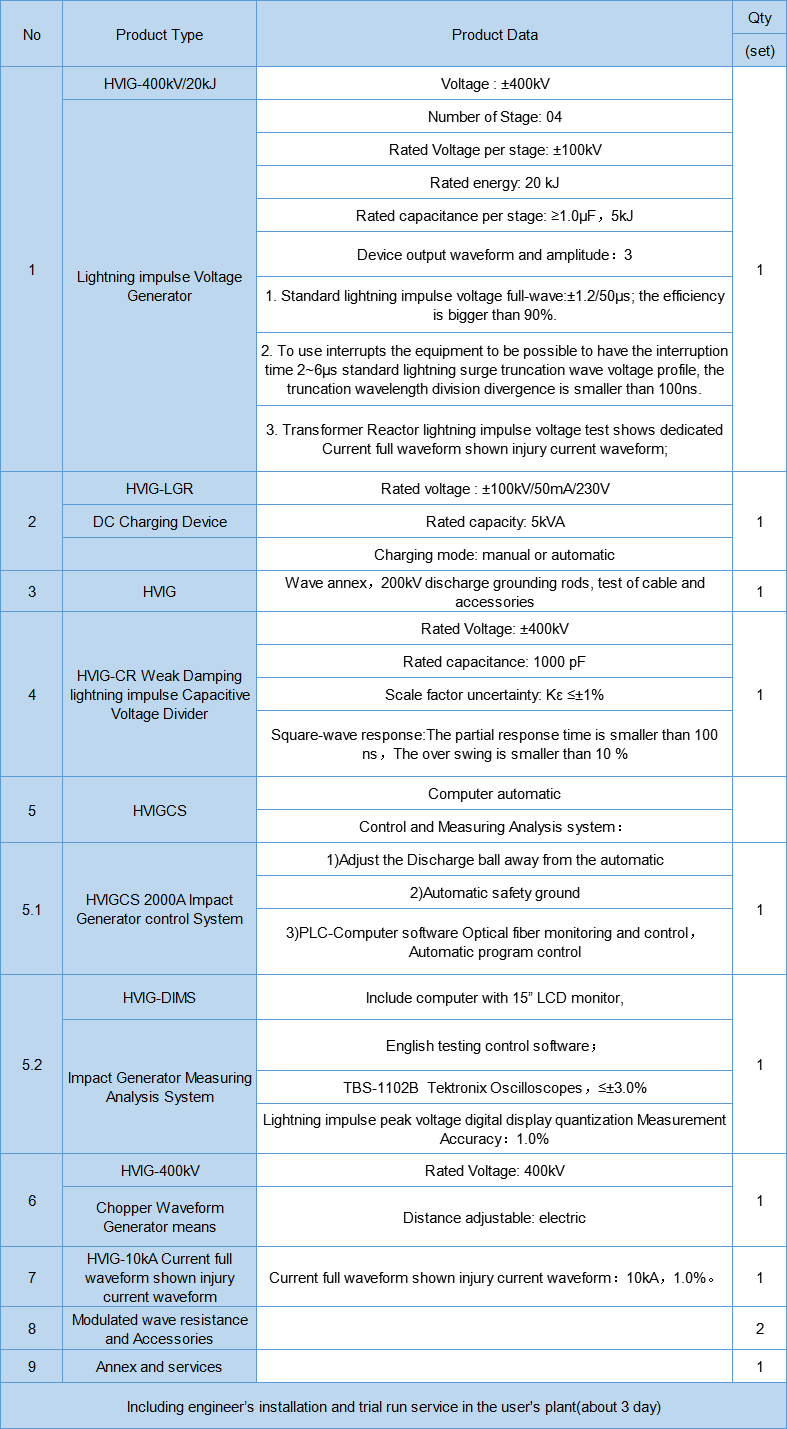

Ⅲ Composition And Parameters

Date of delivery: 2 months.

4 meters long standard containers, the test device requires half of the area of the use of container volume.
