HVJB-702A Three Phase Micro Relay Protection Tester

I、Main Features

1、The standard output of 4 phases of voltage and 3 phases of current

It could combine various type of current or voltage conveniently and has diversity type of protective experiment. Every phase of voltage output is 120V, and the total of the parallel current is 120A. The fourth phase voltage Ux has many functions and it can be set to be 4 type of every three voltages or synchronism checking voltage, or output any value of voltage.

The stand-alone operation is convenient

A Singer Relay is operated by the convenient and flexible rotation mouse through the large LCD screen and all English display. It can complete the most testing work, including all sorts of relay and microcomputer protection test, and can simulate all kinds of complicated instantaneity, permanent, transform failure for the test. It can be used right after the starting up and operated conveniently.

Dual operation model, connect computer for work

By using the English setting operation software on the Windows platform, it can work for all kinds of large, complex and higher degree automation check work and it is convenient to test and scanning all kinds of protection fixed value, as well as storage real-time test data, display vector chart, draw fault waveform, online print statements, and so on.

2、Strong function of software

It can complete all kinds of large complex check work requiring for high degree automation, such as three phase differential test, auxiliary power supply for fast cutting and automatic input test, line protection by synchronism checking voltage reclosing and so on. and it can easily test and scanning all kinds of protection setting for fault playback, storage real-time test data, display vector chart, online print reports, etc.

3、The amount of switch quantity contacts is rich

7 road contact input and 2 couples of empty output contact. The input contact is compatible for both empty contact and 0 ~ 250 v contact, and it has intelligent automatic recognition. Input and output contact can be expanded based on the user’s need.

4、Large LCD screen

The device adopts large and high resolution radio graphics LCD screen with 320 x 240 lattices, and the whole operation process are set on the screen, whose operation interface and test results are both show in English, intuitional and clear.

5、Self-protection

Use reasonable design of the heat dissipation structure, has various reliable and perfect protection and power soft start, along with fault self-diagnosis and locking function.

6、Independent DC power output

The device is equipped with a way of 110v DC and 220v DC special adjustable power output.

7、Cost-effective

It is an interdisciplinary design production, integrating many advanced scientific and technological achievements of many areas. More important, its large tester performance, and small tester price, distinguishes it as a very cost-effective machine.

 More information:

Prduct, Video, News, Project，please kindly click the letters to view:

Product: Relay Tester

Tutorial Video Of Relay Tester

News: Relay Tester

PROJECT: Relay Tester

II、Rated Parameter

1、Alternating current output

Output accuracy: 0.5magnitude

Phase current output (effective value): 0~40A

Three parallel phase current output (effective value): 0~120A

Phase current value with long time under permission (effective value): 10A

Phase current maximum power output: 400VA

Three parallel phase current maximum power output: 1000VA

Three parallel phase current maximum work time: 10s

Frequency range (base wave): 20~1000Hz

Harmonic frequency number: 1~20 time

2、Direct current output

Output accuracy: 0.5magnitude

Current output: 0 ~ ± 10 A/each phase, 0 ~ ± 30 A/every three parallel

Maximum output of load voltage: 20v

3、Alternating current output

Output accuracy: 0.5magnitude

Phase voltage output (RMS): 0 ~ 120v

Line voltage output (RMS): 0 ~ 240v

Phase voltage/line voltage power output: 80VA/100VA

Frequency range (base wave): 20 ~ 1000Hz

Harmonic frequency number: 1 ~ 20 times

4、Direct voltage output

Output accuracy: 0.5magnitude

Phase voltage output amplitude: 0 ~ +160v

Line voltage output amplitude: 0 ~ + 320v

Phase voltage/line voltage power output: 70VA/140VA

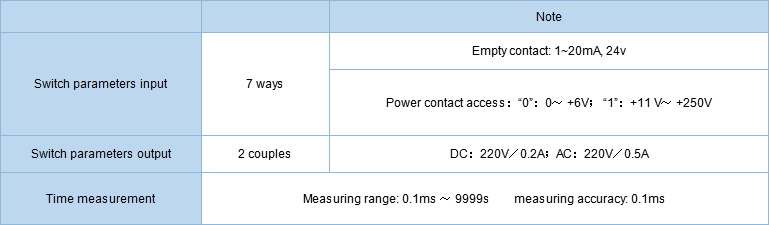

5、The switch quantity and time measurement

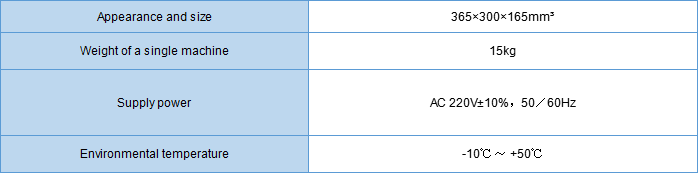

6、Volume and weight
