PROJECT: HVKC-HB Three Travel Comprehensive Tester with High-Voltage Switch2021-03-03


HVKC-HB Three Travel Comprehensive Tester with High-Voltage Switch


Other names:

Circuit Breaker Analyzer

                      Breaker Timing Tester

                      High-Voltage Switch Tester

Time measurement: 12 circuits fixed openning (closing) time

                                   Openning (Closing) Inner-phase with asynchronism

                                   Openning (Closing) Interphase with asynchronism

                                   Closing ()penning) Bounce Time (Bounce Times)

                                   Testing Range: 0.01ms~200s, Resolution:0.01ms

Velocity measurement: instant openning (instant closing) velocity

                                        Appointed time slot( stroke segment or angle segment) average velocity

Velocity measurement range: 1mm sensor 0.01~25.00m/s,

                                                  0.1mm sensor 0.001~2.50m/s

                                                  0.5°angle sensor 1 cycle/ 0.5°

Stroke measurement: moving contact stroke (stroke)

                                      contact stroke (separation)

                                      overshoot stroke or retrace (over travel)

                                      liner sensor :50mm, resolution: 0.1mm

                                      345 wire sensor : 345о,resolution:0.5о

                                      Matching sensor: 300mm, 1000mm, acceleration sensor, laser sensor.


Description:

Measuring three contact travels at the same time.

Inspect various grades of voltages in high-voltage circuit breaker’s mechanic dynamic characteristic parameters about oil lack, oil excess, vacuum and sulfur hexafluoride, to provide convenience to many kinds of breakers.


Interior integrated operational power supply , without needing on-site secondary power supply, is convenient and easy to use on site. It provides the range  adjustable power supply from DC6~270V with 20A of current.


Equip with liner sensors, rotation sensors, universal sensors and holders, and dedicated fixed multifunction connections, which could be easy to mount.


Fit for all types about SF switch, GIS composite apparatus, vacuum switch,  oil switch, produced in domestic or abroad.

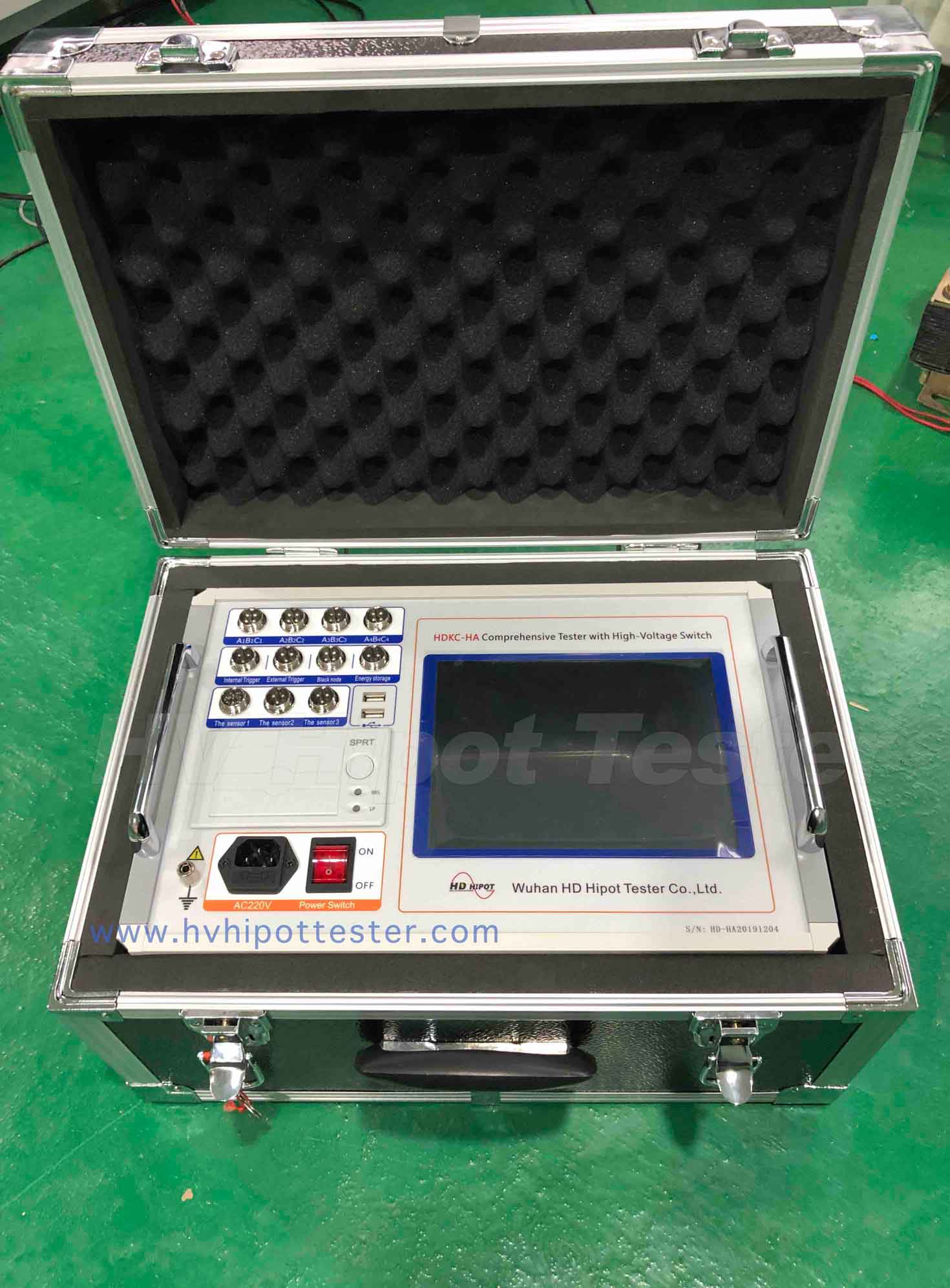

Host

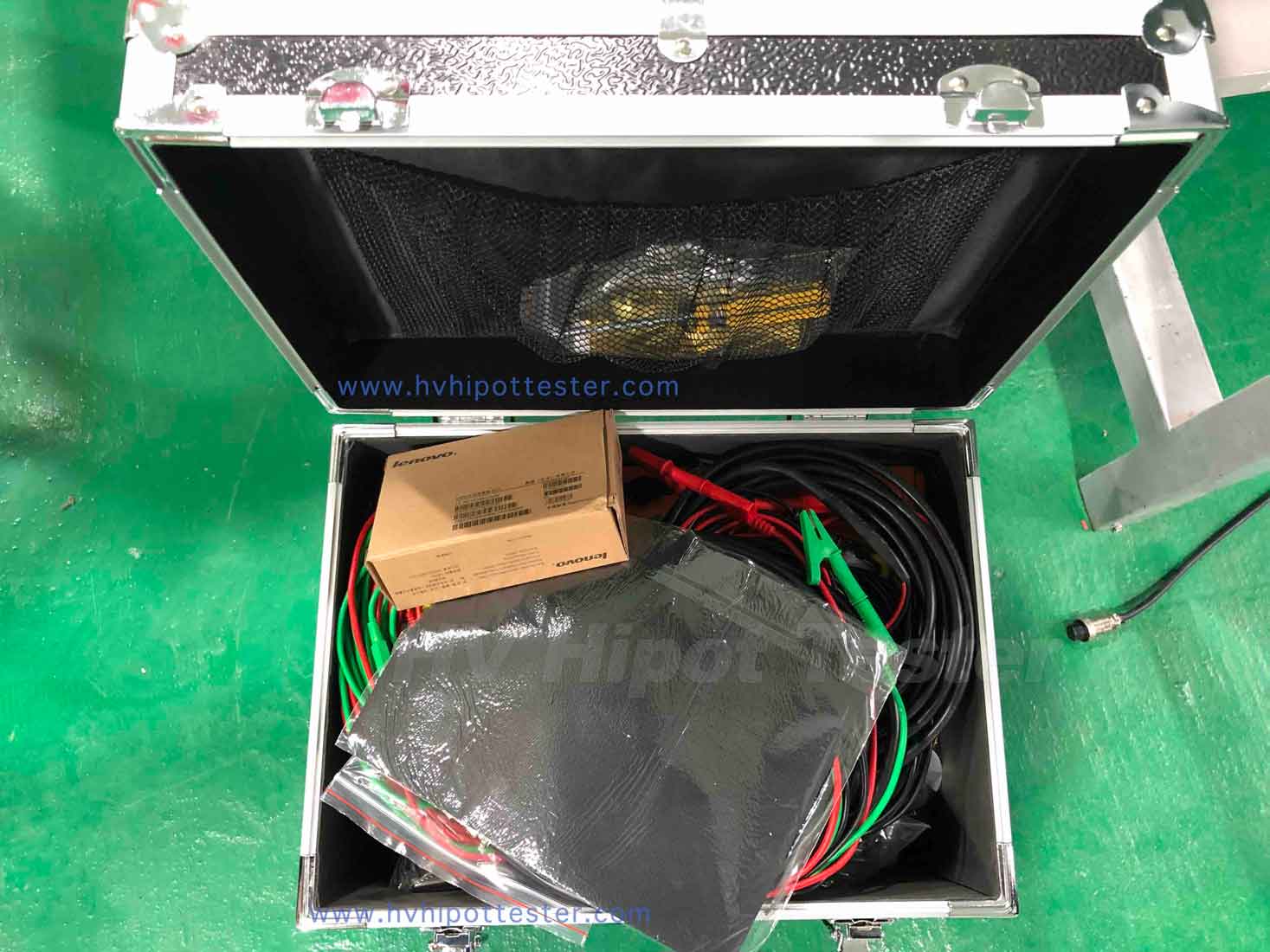

Accessories:

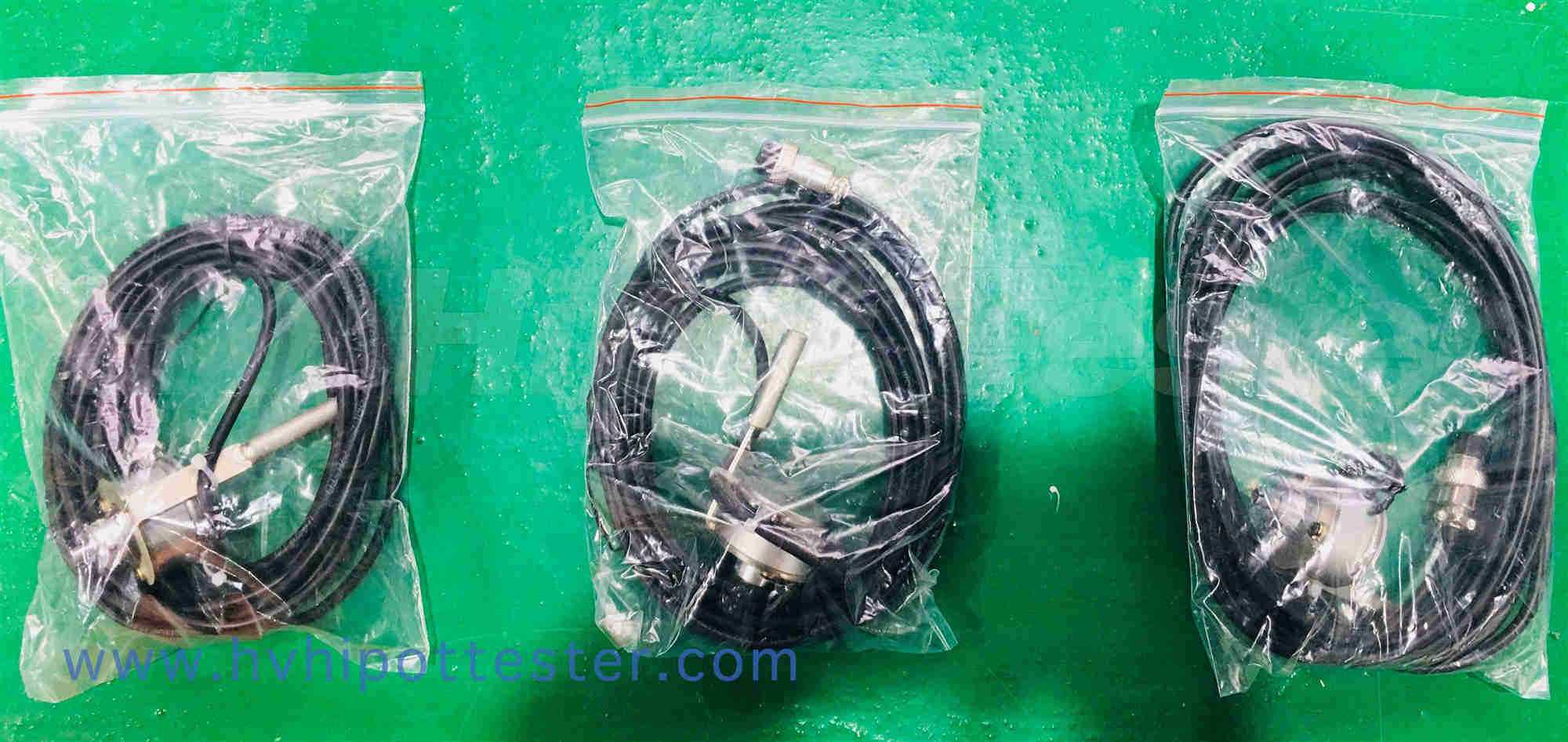

3 Rotating Sensors to measure three contact travels at the same time
