HVYZ-302 Zinc Oxide Arrester Tester

800x480 Color LCD graphic displays.Equipped with an embedded industrial control systems.Touch operation, support for external wireless mouse.Data management capabilities.DC/AC power supply, with high-energy lithium-ion battery

Share:
Inquire Now

Product Description

HVYZ-302 Zinc Oxide Arrester Tester



Ⅰ Introduction

 This product special applies to test the AC parameters of MOA



Ⅱ Features

1.800x480 Color LCD graphic displays.
2.Equipped with an embedded industrial control systems.
3.Touch operation, support for external wireless mouse.
4.Data management capabilities.
5.DC/AC power supply, with high-energy lithium-ion battery, especially for no-power place.
6.Simultaneous measurement of three-phase
7.Characterization data, the waveform display with the screen.
8.Variety of voltage reference signal sampling
① Wired: From the PT terminal measuring winding to take signal, after V / I conversion (isolation), the digital signal wire transmission
② Wireless: From the PT terminal measuring winding to take signal, after V / I conversion (isolation), the digital signal wireless transmission, eliminating the cable long-distance connection
③ no voltage: No need to take the signal from the secondary terminal of voltage transformer, use the way of software calculate to find the voltage reference
9.Safe and reliable, voltage channel using isolation V / I conversion, avoiding the PT secondary short circuit, reduces signal distortion
10.Small in volume, light in weight, easy to carry.
11.Charged, power outages, laboratories can be applied.

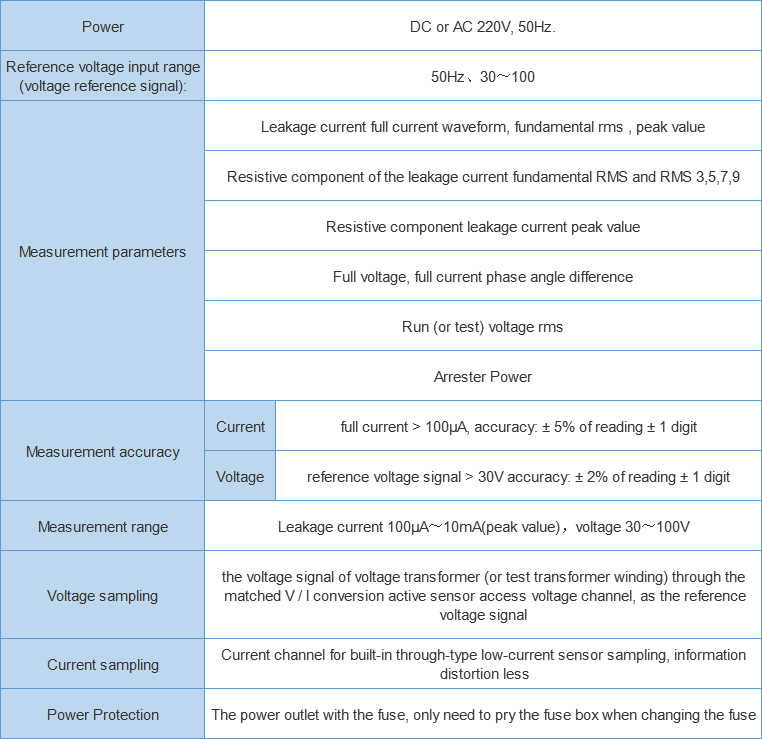

Ⅲ Parameters




FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
