HV-500S Automatic Capacitance Inductance Tester

Ⅰ Introduction

HV-500S adopts a new generation of high-speed mixing microprocessors, highly integrated, simultaneous collect the tested objects’ voltage signals and current signals, automatically calculate the capacitance value, the inductance value and reactive power value. Field measurement capacitor without removing the connecting wire, simplifying the testing process, improve efficiency and avoid damage to electrical equipment. After finished the test, automatically calculate each phase capacitance value and other parameters, can easily distinguish the capacitor quality and connecting conductors faults among components. At the same time, the instrument with data storage and USB communication functions, can ensure the measuring data integrity.

Ⅱ Features

1. 1.Instrument equipped with high-current high-precision current clamp, field measurement capacitor without removing the cable, simplifying the testing process, improve efficiency and avoid damage to electrical equipment.

2.After the three-phase test is completed , automatically calculate the capacitance value of each phase and the total capacitance value , reactive power and other parameters, simple and intuitive , reducing the burden on the tester.

3.Four-terminal measurement: The four-terminal measurement techniques, measurement accuracy, repeat ability good.

4.Automatic Compensation: current automatic segmentation compensation, current full scale linearly, improve measurement precision.

5.Storage features: Max Storage 400 instrument data, historical data query capabilities.

6.USB communication: USB communication functions with the PC.

7.Large Touch Screen: 7-inch color touch -screen LCD display, intuitive interface, easy to operate.

8.Temperature monitoring: monitor ambient temperature, easy to record values of capacitors at different temperatures.

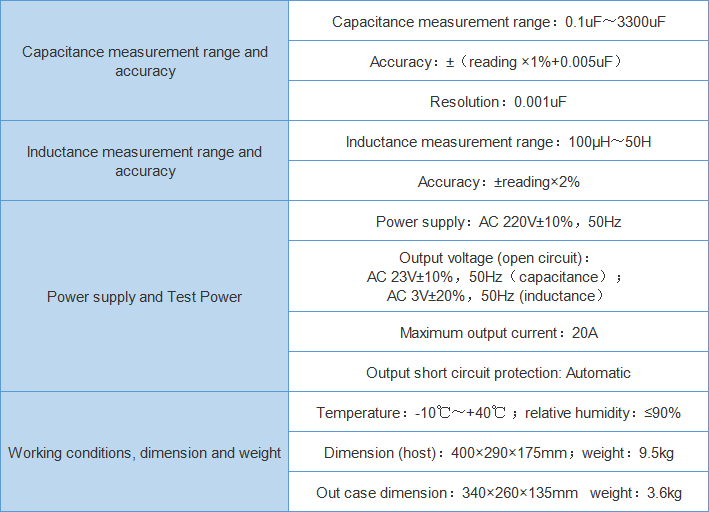

Ⅲ Parameters

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
