HVKC-8 Circuit Breaker Analyzer (HV Switch Tester)

High-end IPC as core, built-in 800MHZ high-speed processor, boot just need 10s to sample. Its main feature meet general hv switches dynamic characteristics test on market,and Siemens graphite contact switch test.

Inquire Now

Product Description

HVKC-8 Circuit Breaker Analyzer (HV Switch Tester)


Ⅰ Introduction

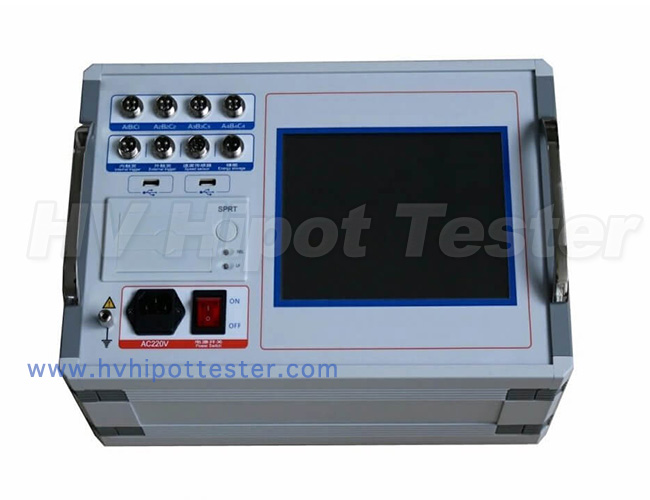

HVKC-8 takes high-end IPC as core, built-in 800MHZ high-speed processor, boot just need 10 seconds to sample. Its main feature not only  meet the general high-voltage switches dynamic characteristics test on the market, but also meet Siemens graphite contact switch test , dynamic resistance waveform can be reliably tested graphite contact switch 6 fracture.

It is intelligent, multi-function, data accurate, strong anti-interference, simple operation, small size, light weight, beautiful appearance, etc. It applies to a variety of indoor, outdoor dynamic characteristics test for less oil, more oil switches, vacuum switches, and SF6 switches. The biggest difference in this high-voltage switch dynamic characteristics tester that can be configured universal speed sensor (accelerometer).

 More information:

Project, News, Video,please kindly click the letters to view:

Product: Switchgear /Circuit Breaker Analyzer

Video: Switchgear /Circuit Breaker Analyzer

News: Switchgear /Circuit Breaker Analyzer

Project: Switchgear /Circuit Breaker Analyzer

Ⅱ Features

1. IPC control.
2. Dynamic resistance waveform can be reliably tested graphite contact switch 6 fracture.
3. Time: 12 contacts’ fixed opening time and closing time, in-phase same time, out-phase same time.
4. Springing: closing springing time, springing numbers, springing waveform for each breaker; rebound magnitude for each breaker.
5. Speed: instant opening, closing speed, max speed, speed wave.
6. Range: over-range, overriding range.
7. Current: opening/closing current of opening/closing coil, current value, waveform diagram.
8. Reclose: setting reclose interval time, metal short circuit time, no-current interval time.
9. Action voltage: DC20-250V/10A (rated operating) digital adjustable power circuit breaker, setting opening/ closing coil action voltage, finish the breaker low voltage action test.
10. Universal speed sensor extremely easy to install.
11. Applicable to all types of domestic and foreign SF6 switch, GIS combination of electrical, vacuum switch, oil switch.
12. Switching one time, get all the data and diagram.
13. The host can store more than one million units of test data, real-time clock inside the machine for easy archival storage test date, time.
14. With U-disk interface, can save data directly to the U disk.
15. Big screen, wide temperate, backlight LCD, full display all data and diagram, electronic LCD contrast adjustment, power-off memory.

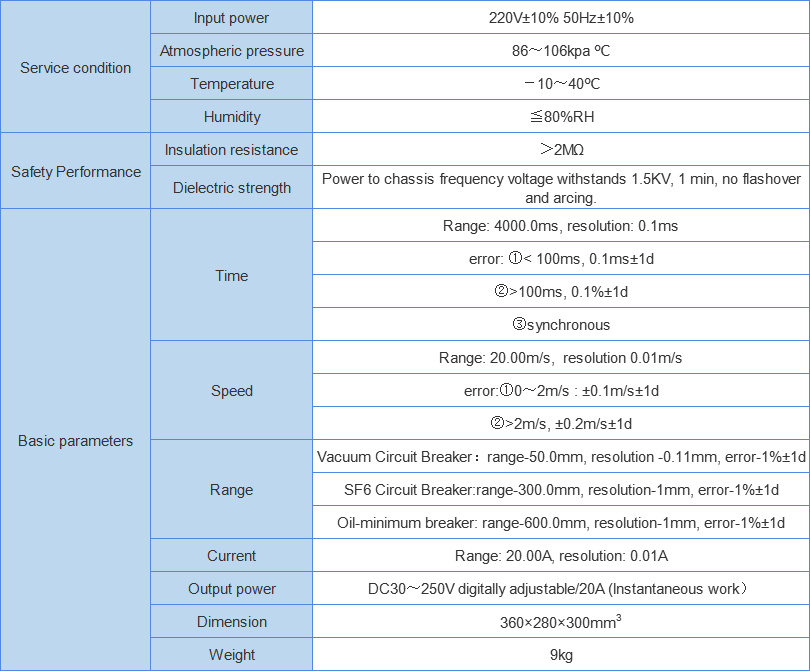

Ⅲ Parameters



1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
