Calibraton of HVZG-120kV/5mA Integrated DC Hipot Test Set2022-04-21

Calibraton of HVZG-120kV/5mA Integrated DC Hipot Test Set


Other names: DC High Voltage Tester,

                      DC High Voltage Generator

Rated voltage: 120kV

Rated current: 5mA


Continuous working time: 10minutes

Description:

DC Hipot Test Set is mainly used for DC endure experiment to high voltage device, with its wide application such as Electric Power Cooperation, Metallurgy, Iron and Steel enterprises.

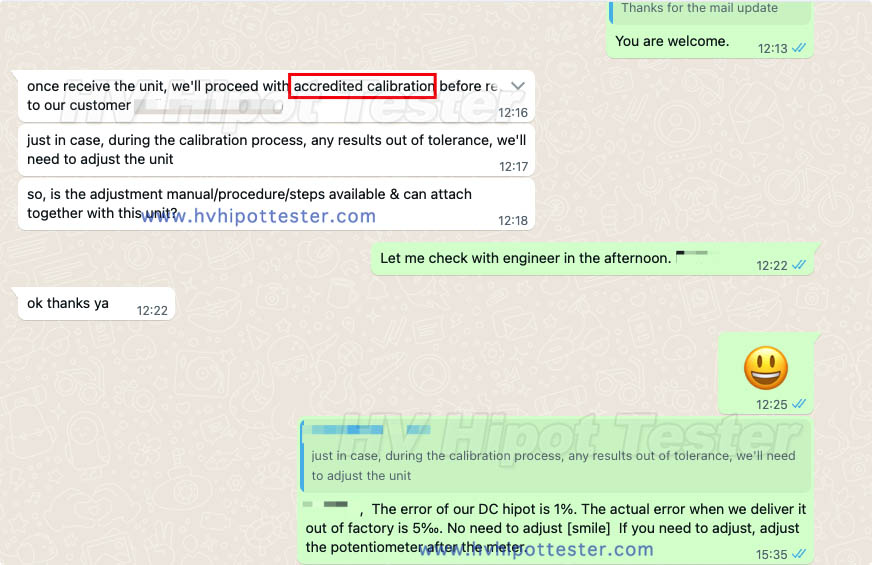

The error of our DC hipot is 1%. The actual error when we deliver it out of factory is 5‰. No need to adjust [smile]



 More information:

Product, Video，News, Project，please kindly click below to view:

Product：DC Hipot Test Set (High Voltage Test Equipment)

Tutorial Video：DC Hipot Test Set

News: DC Hipot Test Set Sales

PROJECT: DC Hipot Test Set


Product Pictures:

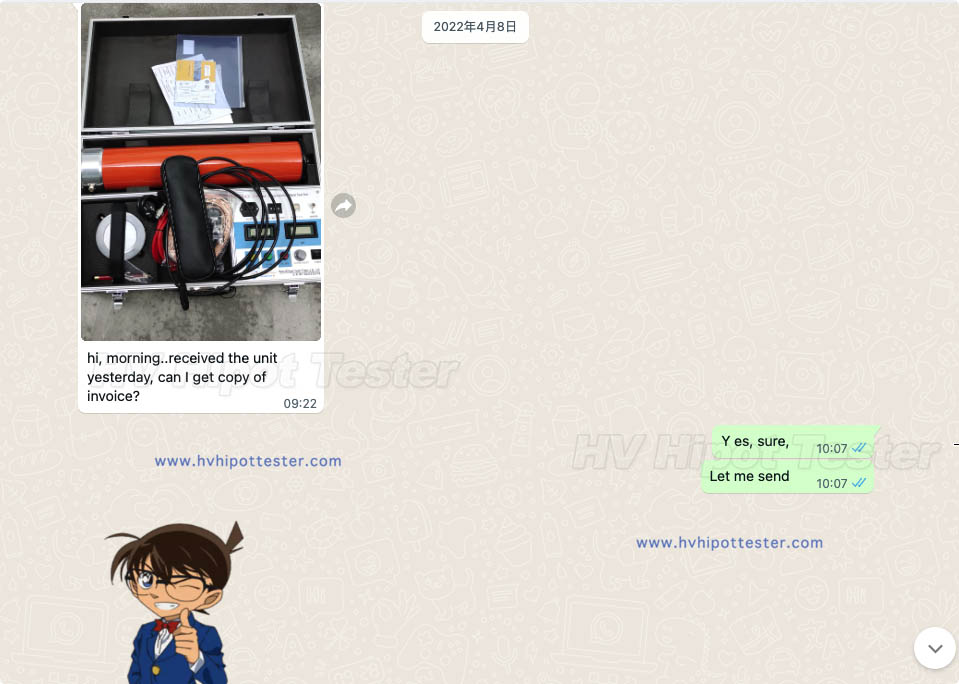

Communication Pictures:
