HVDC-982 Battery Pack Discharge Tester
Other names: Battery Tester

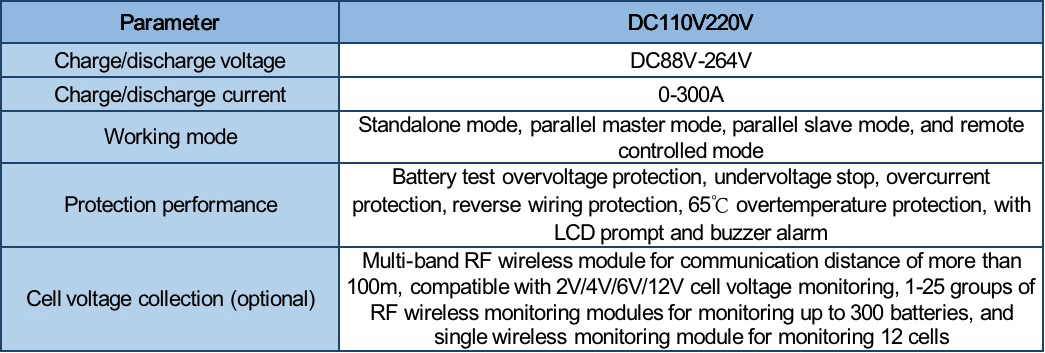

Main Parameters：
Product, Video，News, Project，please kindly click the letters to view:
Product：HVDC-982 Battery Pack Discharge Tester
Tutorial Video Of HDDC-982 110V220V300A Battery Pack Discharge Tester
News：HVDC-982 Battery Pack Discharge Tester has been sent to our customer
PROJECT: HVDC-982 Battery Pack Discharge Tester
Description:
Uninterrupted power supply is the basic protection for running all the equipment and network systems of constantly improved informationization and automation. Whether it is AC or DC uninterrupted power supply system, battery as a backup power supply in the system plays an extremely important role. At ordinary times, battery is in the floating charge standby state, but once the AC power blacks out or other accidents occur, the battery will become the only power supply of the load.
It is known that battery has normal service life cycle, but it often has premature function failure due to such quality problems as material defect, structure defect or process defect, or improper use, etc. To test the standby duration and actual capacity of battery group and to ensure the normal system operation, the checking discharge test is conducted on the battery group on a regular basis or as needed according to the maintenance procedures of the power supply system, so that individual cell that has or is close to function failure can be detected in an early stage for replacement, thus guaranteeing the effectiveness of the whole battery group, or the expected life of the battery group is evaluated.
After years of R&D, the company has developed a series of highly intelligent battery charge and discharge tester with proprietary technology. This tester can be used as the discharge load in the battery off-line state, and realize the constant discharge of the set value by continuously regulating the discharge current. When discharging, the tester will automatically stop discharging when the voltage on the battery group terminal or the cell falls to the set lower limit value, or when the set discharging time is out, or when it reaches the set discharging capacity. In the meantime, the tester records all valuable and continuous real-time data during the process.
This tester system uses wireless relay access to the voltage monitoring information of cells, which is simple, safe and accurate.
The tester has a very friendly man-machine interface, which not only enables a variety of settings and data check under the menu prompt, but also stores the discharge process data in the memory that can be archived to the USB flash drive through the data interface. Such data can be analyzed through special software in upper computer to generate the curves and reports needed.
This instrument has perfect protection function, with sound and light alarm and clear interface prompts.
