PROJECT: HDJB-1600B Six phase relay protection integrated tester2020-08-20

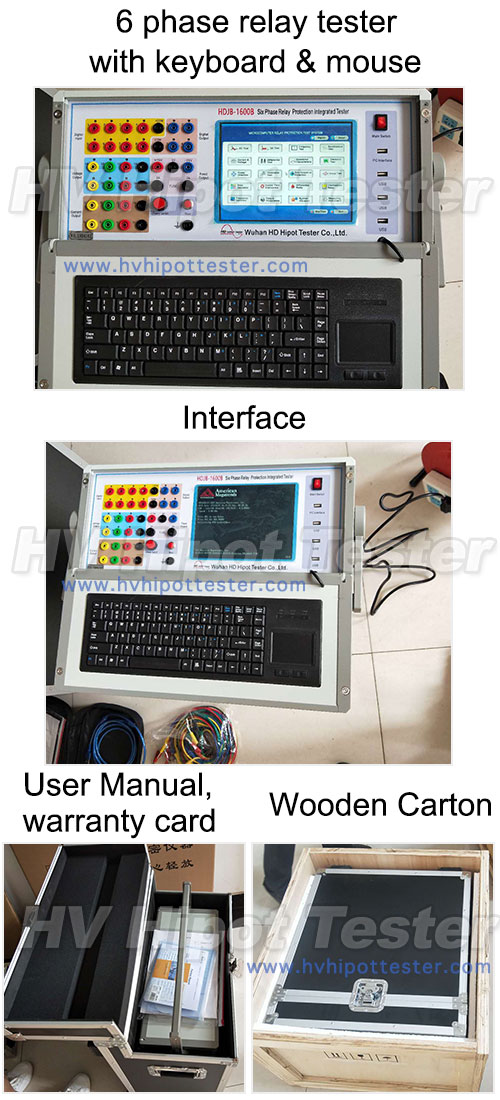

PROJECT: HVJB-1600 Six phase relay protection integrated tester


Other names:

Relay Tester/ Analyzer

                      Relay Protection Tester

1.AC current source

Current range: 6x (0~30A)/phase, accuracy 0.5%.

6 phase parallel current output: 180A

Phase current working value for allowed long time: 10A

Power: 300VA/phase

Maximum output power of 6 phases in parallel: 900VA

Maximum permitted work time of 6 phases in parallel: 10S

Frequency range: 0~1000Hz; accuracy: 0.001Hz

Harmonic time: 2~20; phase: 0--360°; accuracy: 0.1°

2.DC current source

Current range: 20A / phase, power: 300VA/phase, accuracy:0.5%

3.AC voltage source

Phase voltage output:6x( 0~125V)/phase, accuracy: 0.5%

Line voltage output: 0~250V

Phase voltage / Line voltage output power: 70VA / 100VA

Frequency range: 0~1000Hz accuracy: 0.001Hz

Harmonic time: 2~20; phase: 0--360°; accuracy: 0.1°

4.DC voltage source

Phase voltage output range: 0~±150V  accuracy: 0.5%

Line voltage output range: 0~±300V

Phase voltage / Line voltage output power: 90VA / 180VA

5.Switch terminal

Switch input terminals: 8 pairs

Dead contact: 1-20mA, 24V active output inside the device.

Potential flip: 0--6V DC low level

            15-250V DC high level

Switch output terminals: 4 pairs, dead contact, rupturing capacity: 110V/2A, 220V/1A

6.Time measurement range

Range: 1ms-9999s; accuracy: 1ms


 More information:

Product, Project, News, Video,please kindly click the letters to view:

Product: RELAY TESTER

News: HVJB-1600B Six phase relay protection integrated tester PURCHASED by Brand Custom

PROJECT: HDJB-1600B Six phase relay protection integrated tester


Description:

Meets all the requirement of field tests. This tester with standard 6 phase voltage, 6 phase current output, voltage 125V/phase, current 30A/phase, 6 phases in parallel can up to 180A. Digital Signal Processor Microcomputer. Not only test the traditional relays and protectors, but also test the modern micro computer relays, special for transformer differential protection and transfer equipments.


With a separate DC auxiliary voltage source, output voltage 110V(1A),220V(0.6A), provides relays or protective devices which require DC power.
