HV5600 Earth Resistance Tester

Not only can adopt the traditional auxiliary ground electrode method to measure the earth resistance, but also can measure the earth resistance without auxiliary ground electrode

Share:
Inquire Now

Product Description

HV5600 Earth Resistance Tester



Ⅰ Introduction

Good grounding system is an important guarantee of safe and reliable operation of electric power, telecommunications and electrical equipment. The quality of earth resistance is judged by its size. Finding an accurate, fast, simple and reliable method to measure earth resistance has become urgent in lightning protection and grounding field. HV5600 Multifunction Dual-Clamp Earth Resistance Tester can be applied to post and telecommunications, power industry, meteorology, equipment room, power distribution wire, tower transmission line, gas station, factory grounding grid, lightning rod and so on.


The instrument not only can adopt the traditional auxiliary ground electrode method to measure the earth resistance, but also can measure the earth resistance without auxiliary ground electrode, which change the traditional measurement principle and method of earth resistance: the use of double jaws non-contact measurement technology, without auxiliary ground electrode and isolating grounding body and load, to achieve the on-line measurement. In the single-point earth system and strong interference conditions, it is recommended that using auxiliary ground electrode to measure the resistance.


Ⅱ Features

  1. Double clamp / ground piles measurement method: Can be applied to any place to measure whether multi-point or single point grounding.

  2. Strong anti-interference ability: Self-generating high-frequency current can filter 50Hz and 100Hz harmonic interference current, even in the 500KV substation environment, it can accurately measure.

  3. Wide measurement range and high resolution: Range from 0.01Ω ~ 200Ω, resolution 0.01Ω, the ground resistance under 0.7Ω also can be accurately measured.

  4. Large jaw design Jaw diameter is 50mm (standard configuration), which meets the case using flat iron / steel wire grounding, special jaw size can be customized.

  5. High-capacity data storage It can store 200 sets of measurement datum.

  6. Simple operation, single-operator Small size, light weight, explosion-proof carrying case, is easy for field measurements.

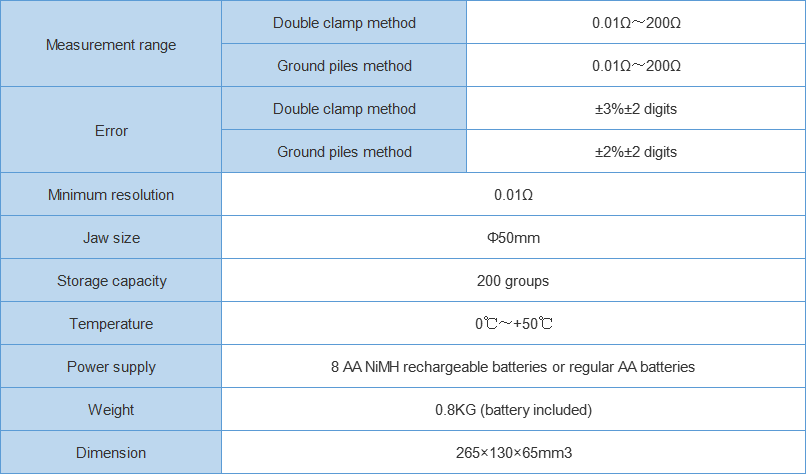

Ⅲ Parameters



FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
